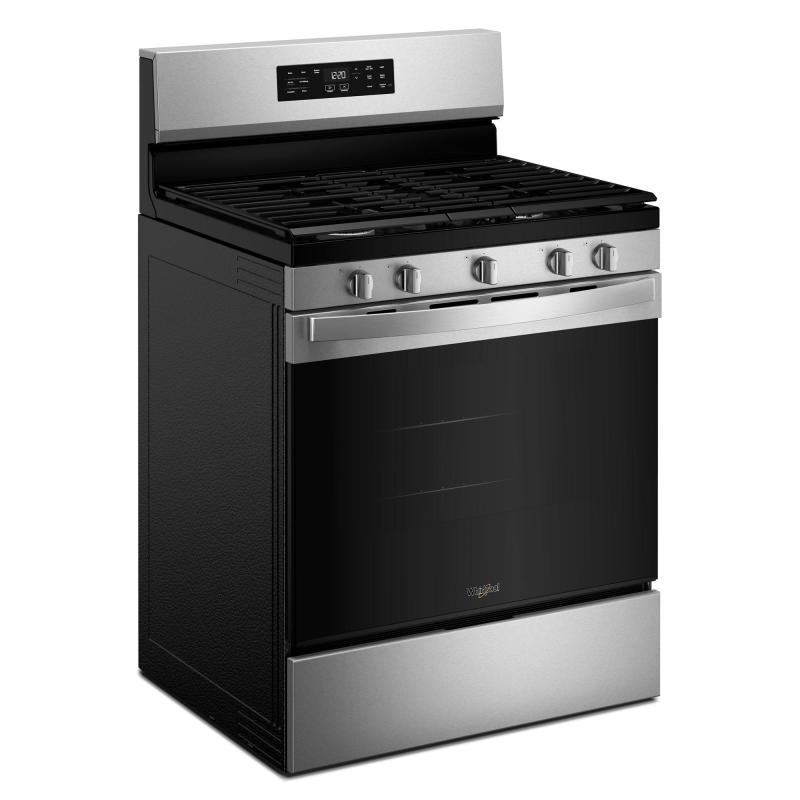

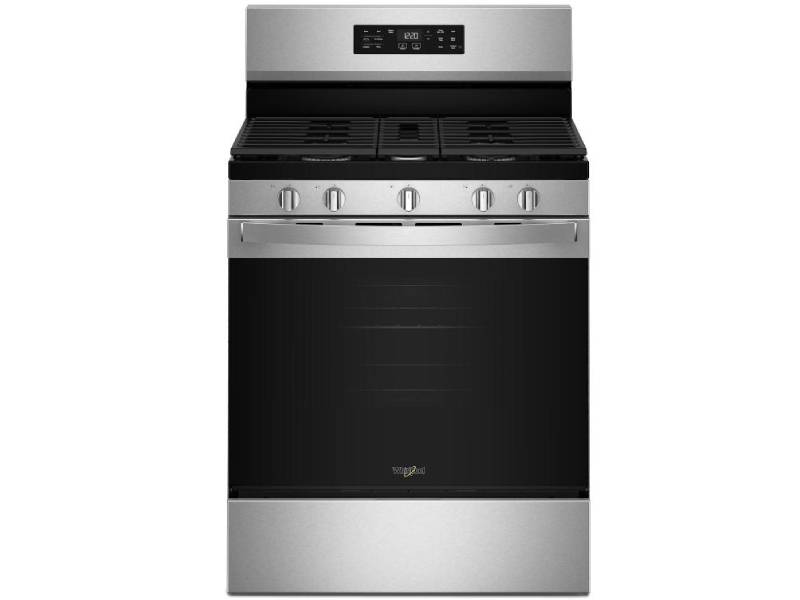

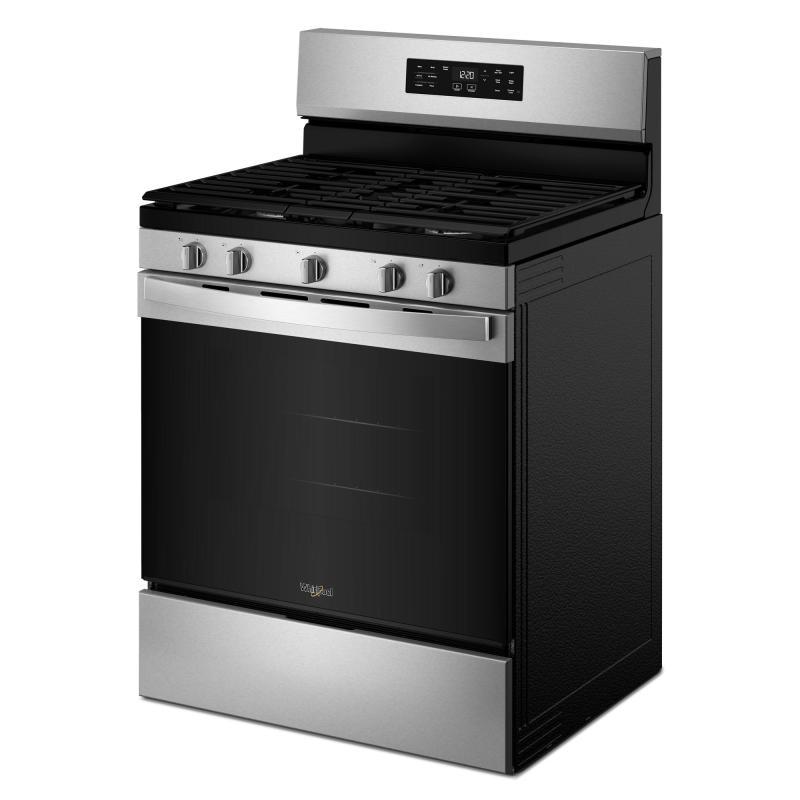

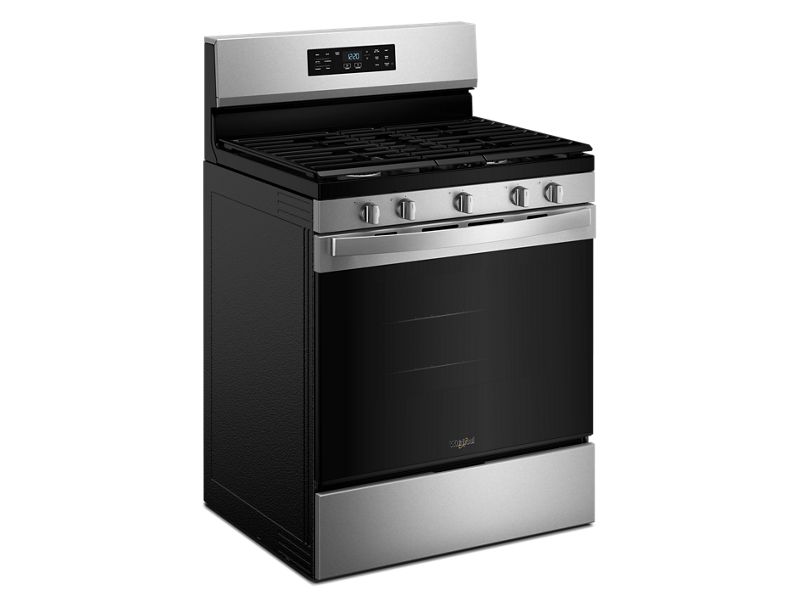

30" Whirlpool Gas Range with Air Cooking Technology and Steam Clean - WFGS4530SZ

Top Features

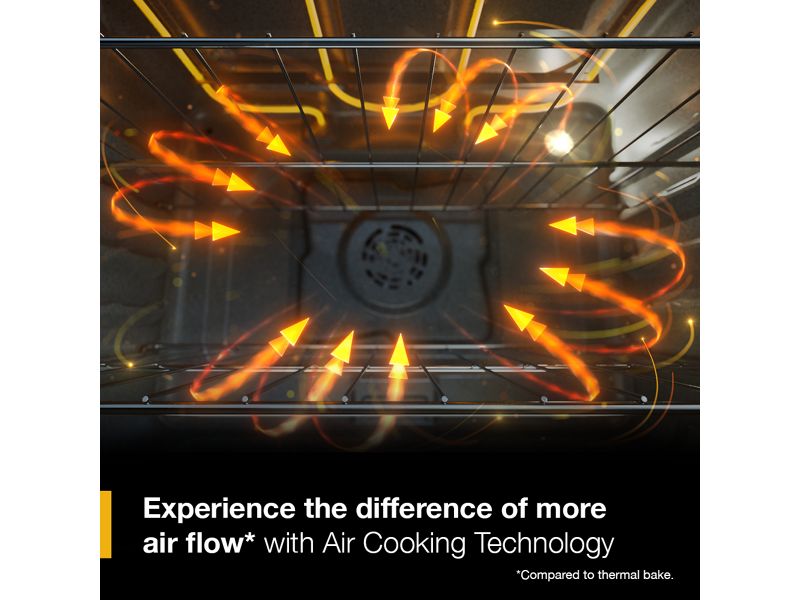

Air Cooking Technology
Experience the Difference with Air Cooking Technology, featuring more airflow with No Preheat Air Fry and Air Baking.
(Compared to thermal bake.)

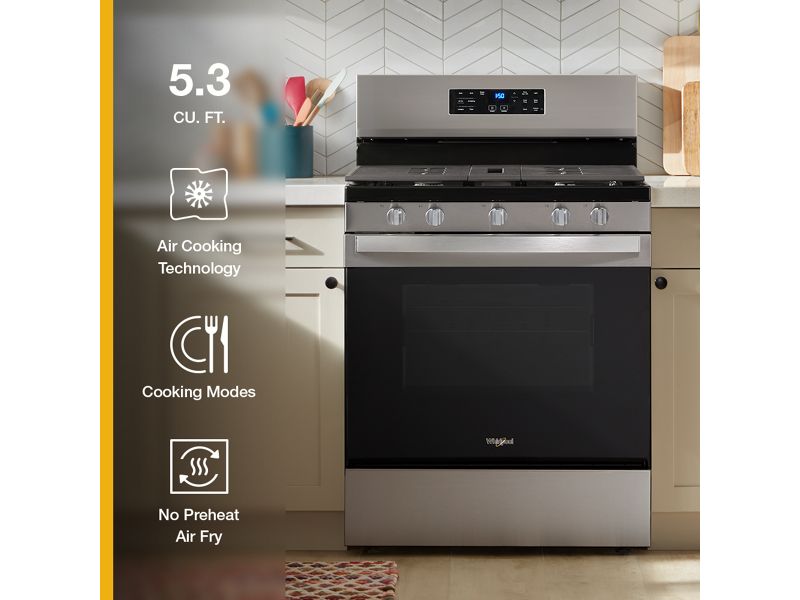

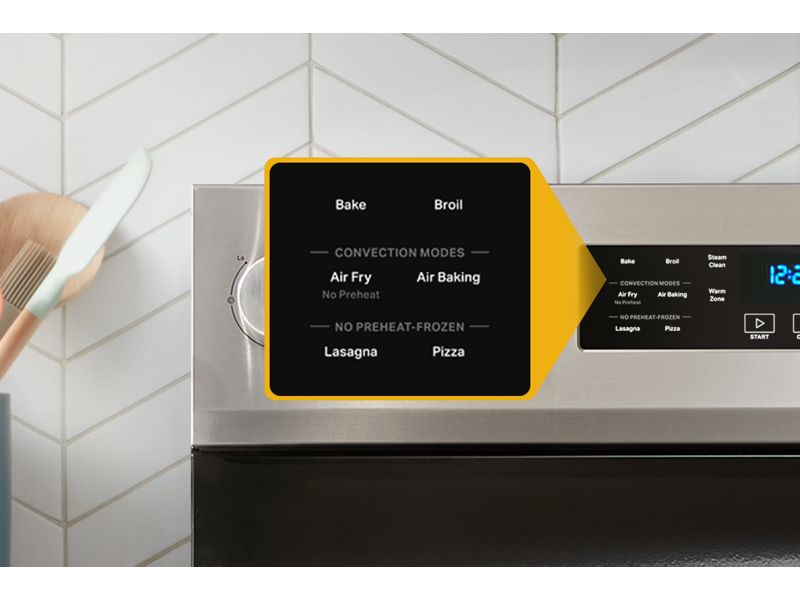

Cooking Modes
Make more feel-good meals with a variety of cooking modes. Choose from modes that use Air Cooking Technology, like No Preheat Air Fry and Air Baking, or use traditional thermal cooking modes like Bake or Broil.
No Preheat Air Fry
Save up to 20 minutes* and get the right heat at the right time with our most advanced air fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt. *Compared to WFE550S0LZ
Additional Features
Griddle Zone
Maximize your cooking space for a variety of mealtime options with the 8,000 BTU Griddle Zone. One long, oval-shaped burner makes it easy to cook up all that delights, all at once.
Steam Clean
Use the Steam Clean cycle regularly to help prevent large soils from building up. To quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle, and wipe away.

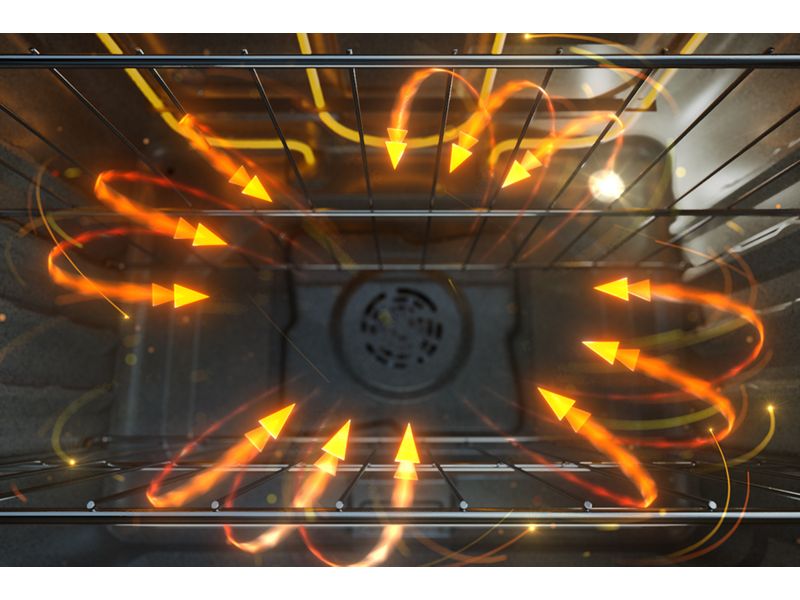

Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.
SpeedHeat™ Burner
Use the SpeedHeat Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.

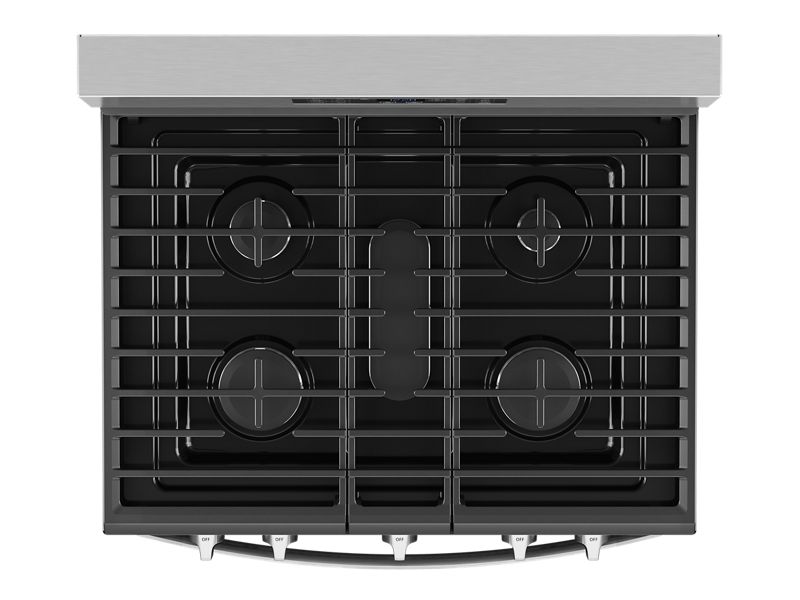

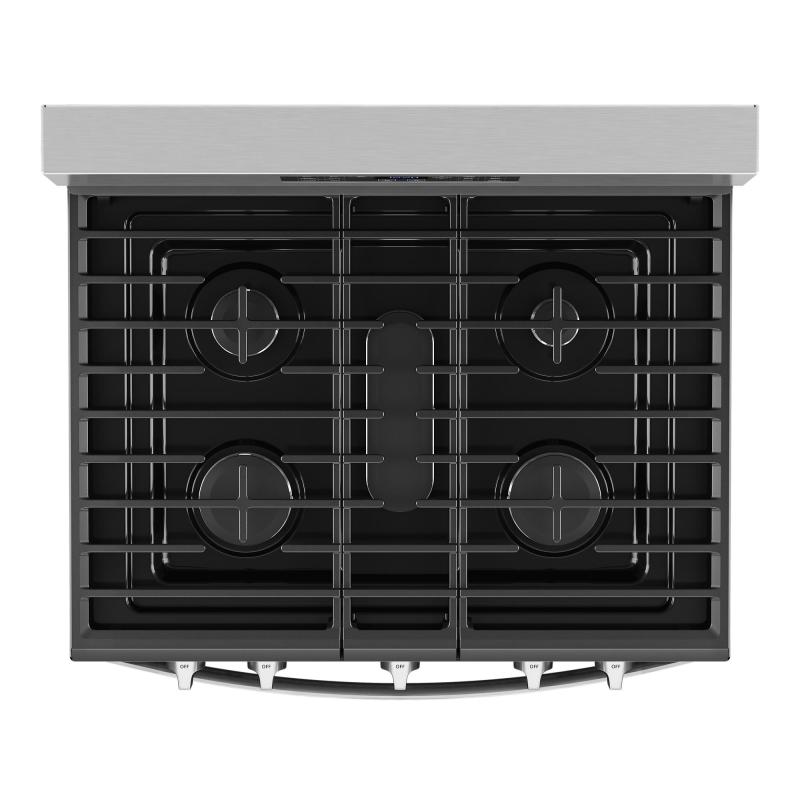

Edge-to-Edge Grates
Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.
No Preheat Mode
Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
Bake
Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
Cooktop Flexibility
Easily cook multiple dishes at once with a flexible cooktop that offers a range of element sizes and power levels.
Large Capacity Oven
Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious, large-capacity 5.0 cu. ft. oven.
Storage Drawer
Easily store kitchen items from baking sheets to cooking pans in the storage drawer to free up space elsewhere in your kitchen.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
Dimensions | |
---|---|
Depth | 27.75 " |
Width | 29.88 " |
Height | 47.88 " |
Carton Depth | 29.0 " |
Carton Height | 49.0 " |
Carton Width | 32.0 " |
Cutout Depth | 24.0 " |
Cutout Height | 36.0 " |
Cutout Width | 30.0 " |
Depth Closed Excluding Handles | 25.31 " |
Gross Weight | 173.0 lbs |
Depth With Door Open 90 Degree | 46.69 " |
Maximum Height | 52.2 " |
Minimum Height | 46.7 " |
Capacity FT3 (cubic feet) | 5.0 |
Depth Closed Including Handles | 28.0 " |
DETAILS | |
Broiler Location | Top Center |
Oven Control Knob Type | N/A |
Oven Cleaning Type | Steam Clean |
Number Of Rack Guides | 5 |
Number Of Oven Racks | 2 |
Number Of Oven Lights | 1 |
Interior Color | Grey |
Hidden Bake Element | N/A |
Cooktop Surface Material | Porcelain Coated Steel |
Convection Functions | No |
Convection Element Type | Fan |
Oven Control Location | Rear Control |
Broiler Element Power | 1300WElectricBroil |
Bake Element Power | 2400W |
Rack Guide Type | Embossed |
Oven Rack Type | 2 Standard |
Oven Light Type | Halogen |
Oven Light Switch Location | Oven Control |
Oven Interior Width In Inches | 24.5 |
Oven Interior Depth In Inches | 18.5 |
Oven Cooking System | Convection |

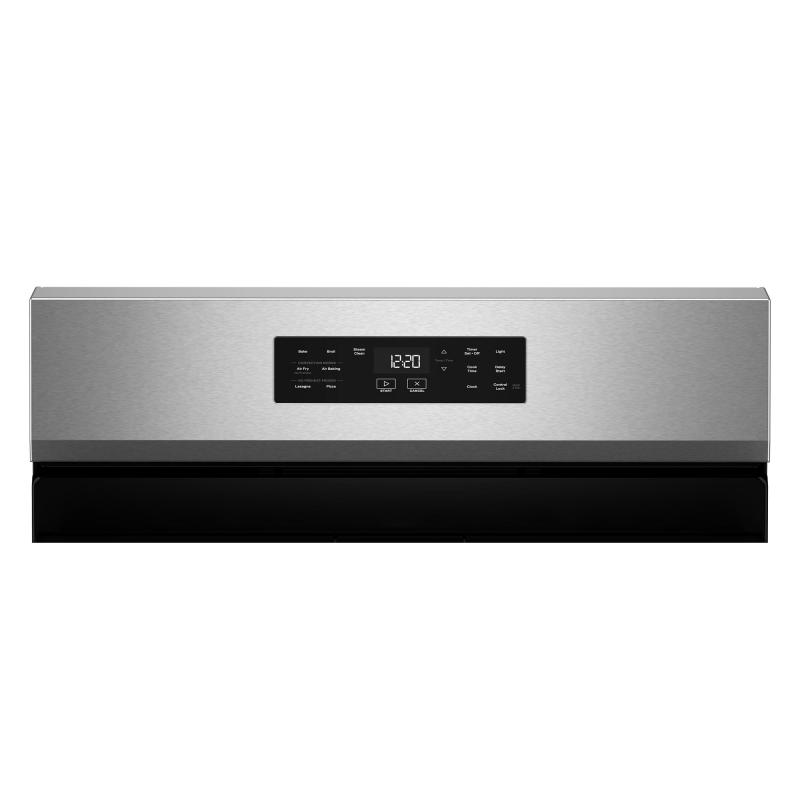

Oven Control Type | Tap Touch |
Description | |
Range Type | Freestanding |
Size In | 30 |
Cooktop Details | |
Right Rear Element Burner Type | Simmer |
Right Rear Element Burner Size | N/A |
Right Rear Element Burner Power | 5000BTU |
Right Front Element Burner Type | Extra Large |
Right Front Element Burner Size | N/A |
Right Front Element Burner Power | 15000BTU |
Number Of Grates | 3 |
Auto Re Ignition | Yes |
Number Of Cooking Element Burners | 5 |
Left Rear Element Burner Type | Standard |
Left Rear Element Burner Size | N/A |
Left Rear Element Burner Power | 9500BTU |
Left Front Element Burner Type | Large |
Left Front Element Burner Size | N/A |
Left Front Element Burner Power | 15000BTU |
Ignition Type | Direct Spark Ignition |
Grate Details | Dishwasher Safe Matte Finish Porcelain Coated Steel Grates |
Cooktop Element Style | Sealed Burners |
Cooktop Control Type | Knobs |
Cooktop Control Location | Backguard |
Cooktop Configuration | All Burners |
Center Rear Element Burner Size | N/A |
Center Rear Element Burner Type | Sealed Burner |
Center Rear Element Burner Power | 8000BTU |
Exterior | |
Drawer Type | Storage Drawer |
Door Removable | Yes |
Handle Type | Reach-Through Handle |
Handle Material | Metal |
Handle Color | Print Resist Stainless Steel |
Features | |
Total Gas Btus Oven S | 16,500 |
Total Gas Btus Cooktop | 47,500 |
Power Outage Compatible | Yes |
Natural Gas Convertible | No |
LP Convertible | Yes |
Hot Surface Indicator Light | Yes |
Heating Element On Indicator Light | Yes |
Griddle | No |
Automatic Convection Conversion Temperature Adjust | No |
Specifications | |
Optional Accessories | 4396096RB, W11692811 |
Country Of Origin | USA |
Matte Finish Vs Satin Finish | Matte Finish |
Cast Iron Vs Porecelain | Porcelain Coated Grates |
Dishwasher Safe | Yes |
CONTROLS | |
Knob Type | Plastic |
Knob Color | Print Resist Stainless Steel |
Control Type | Knobs |
Configuration | |
Range Configuration | Freestanding |
Oven Configuration | Single Oven |
Configuration and Overview | |
Fuel Type | Gas |
Certifications | |
Star K Certified | Star K Certified |
CUL | Yes |
UL | Yes |
ADA Compliant | No |
Electrical | |
Watts | 1400 |
Hz | 60 |
Volts | 120 |
Power Cord Included | Yes |
Amps | 15 |
