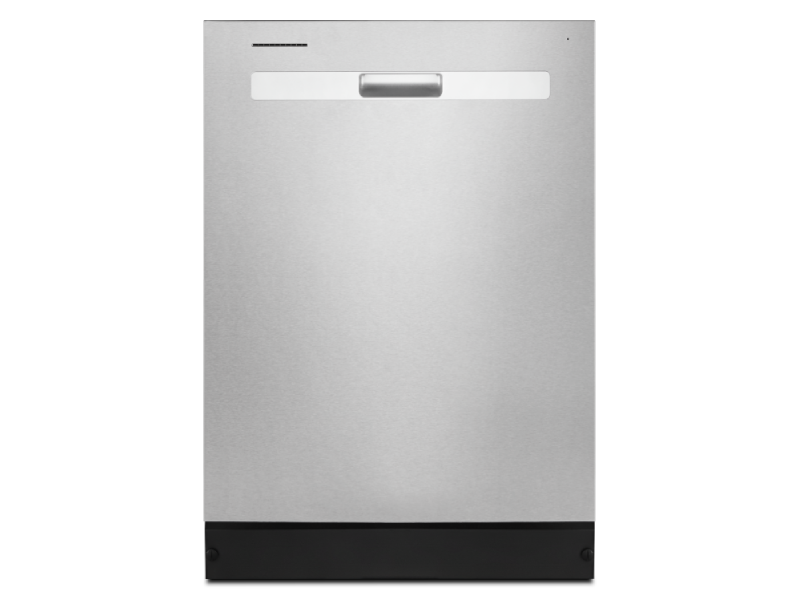

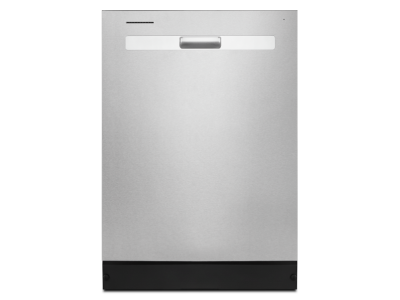

24" Whirlpool 55 DBA Quiet Dishwasher with Boost Cycle and Pocket Handle - WDP540HAMZ

Key Features
- 55 dBA
- Extended Soak Cycle
- Heavy Cycle
- Boost Cycle
- Normal cycle
Overview
Product Description

Quiet Dishwasher with Boost Cycle and Pocket Handle
Target stubborn messes with the Whirlpool 24" Dishwasher with Boost Cycle and a Triple Filtration Wash System. Use the Extended Soak Cycle to dissolve stuck-on food and elevate drying performance with the Extended Dry Cycle. Keep your kitchen quiet during cleanup with a sound level of just 55 dBA.
Features

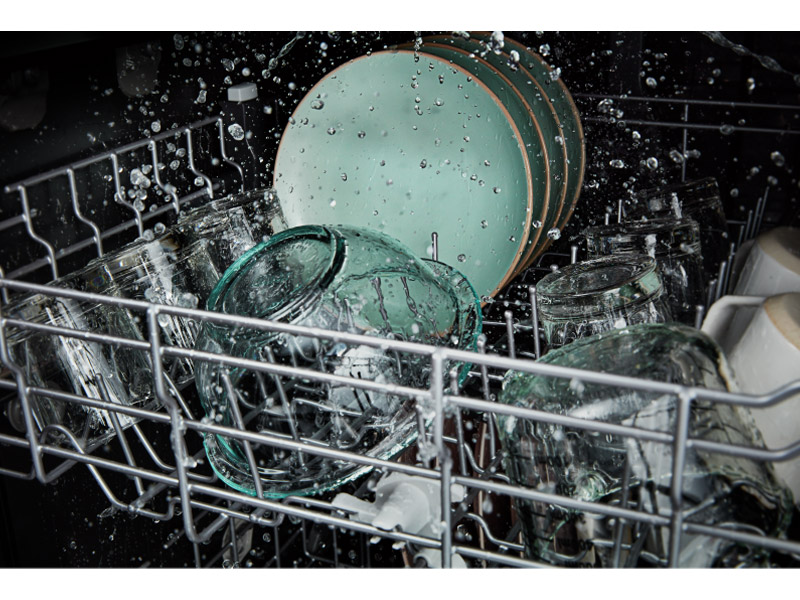

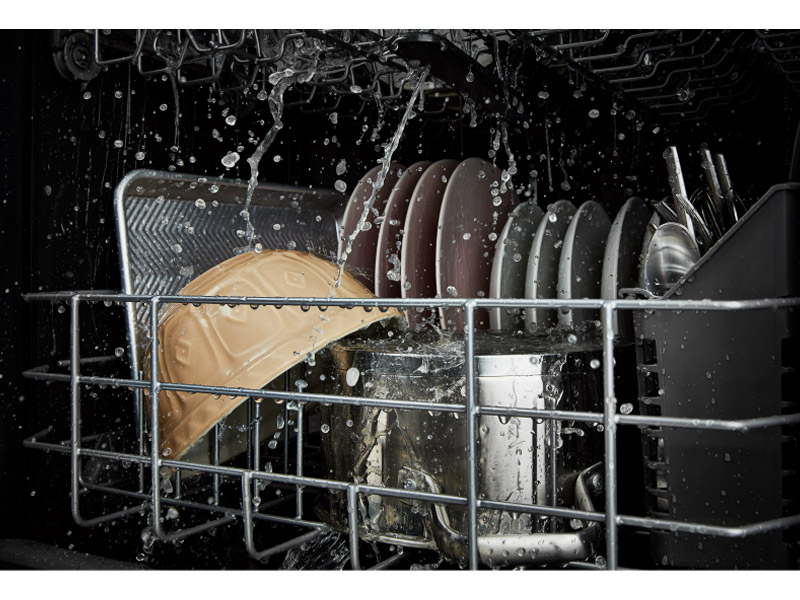

Boost Cycle
Skip scrubbing and pre-rinsing with the Boost Cycle. This cycle uses more water, time and heat than the Normal Cycle and takes less time than the Heavy Cycle so you can target tough messes that need a little extra effort.

Quick Wash Cycle
Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.
Additional Features
55 dBA
Keep your kitchen quiet during cleanup with a dishwasher sound level of just 55 dBA.
Extended Soak Cycle
Presoak and wash in one Extended Soak Cycle to help stuck-on food dissolve away without any extra steps.
Heavy Cycle
Extra cycle time takes care of heavily soiled messes and hard-to-clean dishes.
Normal cycle
Use the Normal Cycle for normal amounts of food soil to clean up leftover messes from your day-to-day meals.
High Temperature Wash Option
High Temperature Wash Option raises the water temperature to help remove stubborn grease and food grime.
Heated Dry Option
A Heated Dry Option allows you to use a clean, dry dish straight from the dishwasher thanks to added heat for drying.
Extended Dry Option
Extended Dry Option extends your dry cycle about 30 minutes* to help elevate drying performance for any cycle.
Sani-Rinse Option
Heats the final rinse water to 155°F, eliminating 99.999% of food soil bacteria.
Fingerprint Resistant Stainless Steel
Easy-to-clean, fingerprint resistant stainless steel finish keeps your range looking as good on the outside as it works on the inside.
Cycle Status Indicator
The Cycle Status Indicator light on the outside of the unit glows blue when your dishwasher is running and turns off when the cycle is complete.
Triple Filtration Wash System
Keep dishes clear of rinsed food particles with a Triple Filtration Wash System that uses a coarse filter to catch large soils, a fine filter to catch medium soils and a micro-fine filter to catch small soils between wash stages.
Cycle Memory
Cycle Memory quickly starts your dishwasher with one button. It automatically remembers the last cycle you picked so it’s stored and ready to go.
Hybrid Tub with Dark Gray Interior
A Hybrid Tub with Dark Gray Interior helps mask food stains with a stainless steel interior door and dark gray plastic tub.

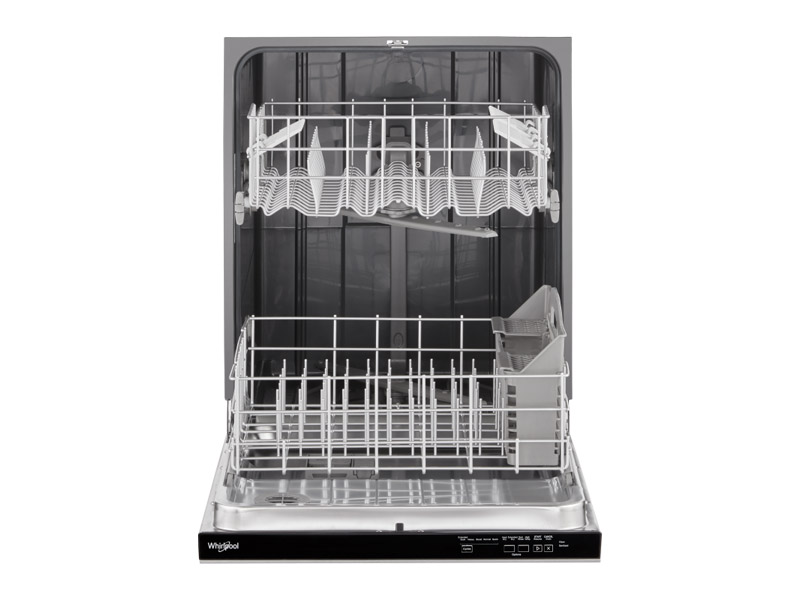

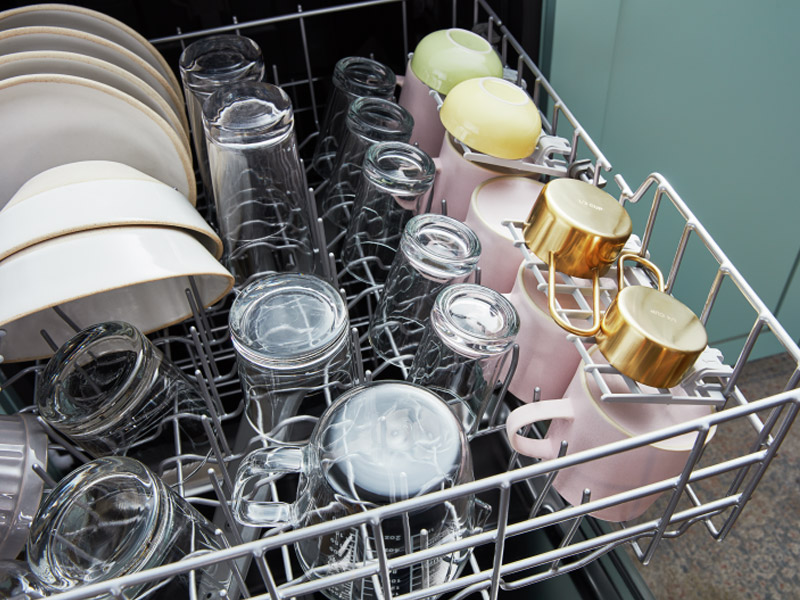

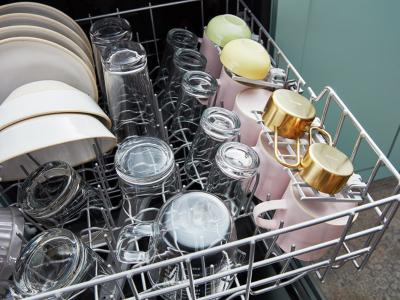

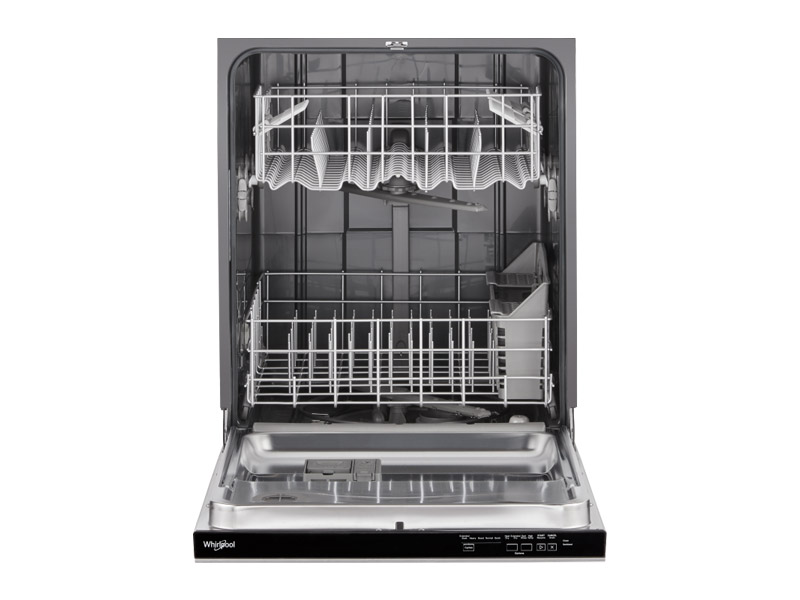

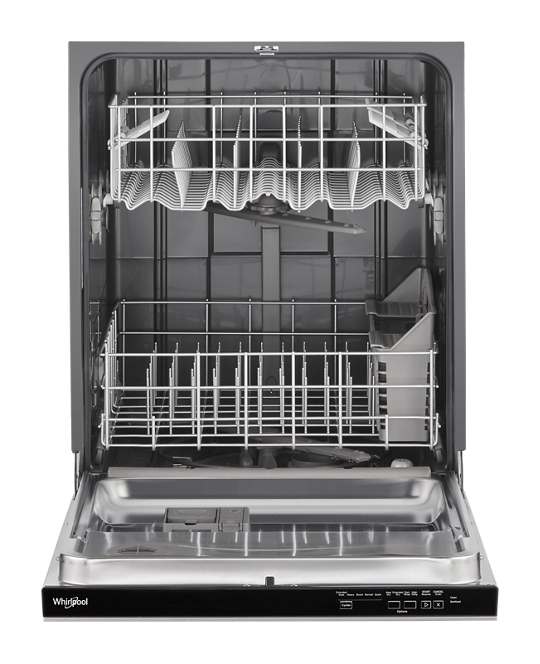

Room for 12 Place Settings
Holds up to 12 place settings including 12 dinner plates, salad plates, saucers, bowls, cups, glasses, knives, dinner forks, salad forks, small spoons and large spoons.
Cycle Interrupt Light Signal
A blinking Cycle Interrupt Light Signal on the front of the unit will tell you when the cycle has been interrupted so you don't forget to restart the cycle.
Nylon Rack Coating
Nylon coating on the dishwasher racks provides protection that you can trust to ensure long-lasting use.
Overfill Detect
A float sensor inside the dishwasher will detect if too much water is in the tub and cut the power to the inlet fill valve to help prevent overfilling.
Available in Towel Bar or Pocket Handle Options
Keep washcloths and towels on hand for quick cleanups or get the sleek look you prefer with the towel bar or pocket handle option.
Eco Series
Designed with efficiency in mind. Saving you water, energy and money with quality wash and dry performance. *Compared to dishwashers meeting the minimum 2023 Natural Resources Canada efficiency standards
| Certifications | |
|---|---|
| ADA Compliant | No |
| CEE Tier Rating | Tier I |
| Eco Series | Yes |
| Energy Star | No |
| NSF Certified | Yes |
| CONTROLS | |
| Automatic Temperature Controls | Yes |
| Control Location | Top |
| Control Type | Electronic Touch |
| Status Light | Blue |
| DETAILS | |
| Built-In Water Softener | No |
| Dishwasher Cycle Selection | Boost, Extended Soak, Heavy, Normal, Quick Wash |
| Dishwasher Option Selections | Extended Dry, Heated Dry, Hi Temp Wash, Sani Rinse® |
| Dispensers | Detergent and Rinse Aid |
| Drying System Type | Heating Element |
| Last Cycle Recall | Yes |
| Leak Detect | Yes |
| Motor Horsepower | 0-3/40 |
| Number of Place Settings | 12 |
| Number of Racks | 2 |
| Wash Levels | 4 |
| Number of Washarms | 2 |
| Rinse Aid Dispenser Level Indicator | Optical Level Indicator |
| Sensor | No |
| Sound Package | Quiet Pack™, Yes |
| True Hold Door | No |
| Tub Material | Plastic with Stainless Steel Door |
| Tub Design | Built-in Tall Tub 24in. |
| Wash System Type | Removable Filter |
| Water Filtration | Yes |
| Features | |
| Dishwasher Features | Boost Cycle |
| Exterior Details | |
| Door Style | Flat |
| Handle Type | Long Pocket |
| Window | No |
| Rack Details | |
| Lower Rack Cushion-Tip Tines | No |
| Lower Rack Fold-Down Tines | No |
| Lower Rack Style | Straight |
| Second Level Rack Adjustable | No |
| Second Level Rack Fold-Down Tines | No |
| Silverware Basket Covers | Yes |
| Silverware Basket Location | Lower Rack - Right Side |
| Silverware Basket Type | Full Length Non Splitable |
| Dimensions | |
| Depth | 62.23 cm, 24-1/2 in |
| Depth With Door Open 90 Degree | 125.73 cm, 49-1/2 in |
| Gross Weight | 36.29 kg, 80 lbs |
| Height | 85.09 cm, 33-1/2 in |
| Maximum Height | 87.63 cm, 34-1/2 in |
| Minimum Height | 85.09 cm, 33-1/2 in |
| Net Weight | 31.30 kg, 69 lbs |
| Width | 60.64 cm, 23-7/8 in |
| Electrical | |
| Amps | 8-1/10 |
| Hz | 60 |
| Power Cord Included | No |
| Volts | 120 |
| Cycles | |
| Wash Cycles | 5 |
| INTERIOR DETAILS | |
| Interior Light | No |
