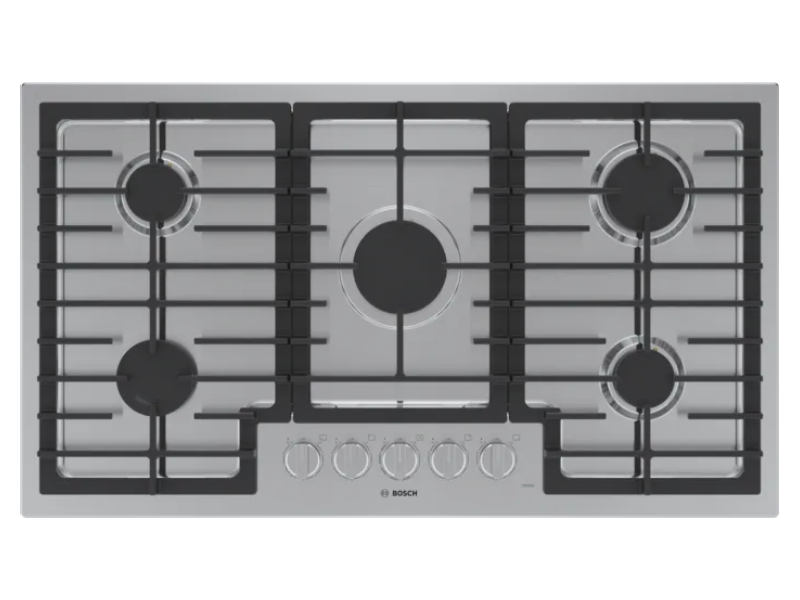

36" Bosch 500 Series 5 Burner Gas Cooktop - NGM5659UC
Highlights

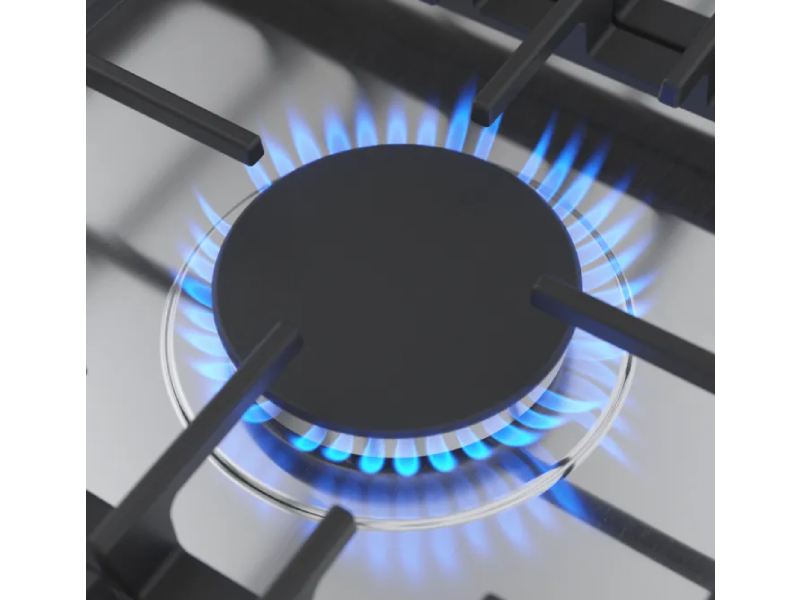

Fit multiple pans and cook with 5 burners
5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.
Residual Heat Indicator
Residual heat indication shown on the cooktop with a 'H' for hot to touch or 'h' for warm taking the guesswork out of safety.

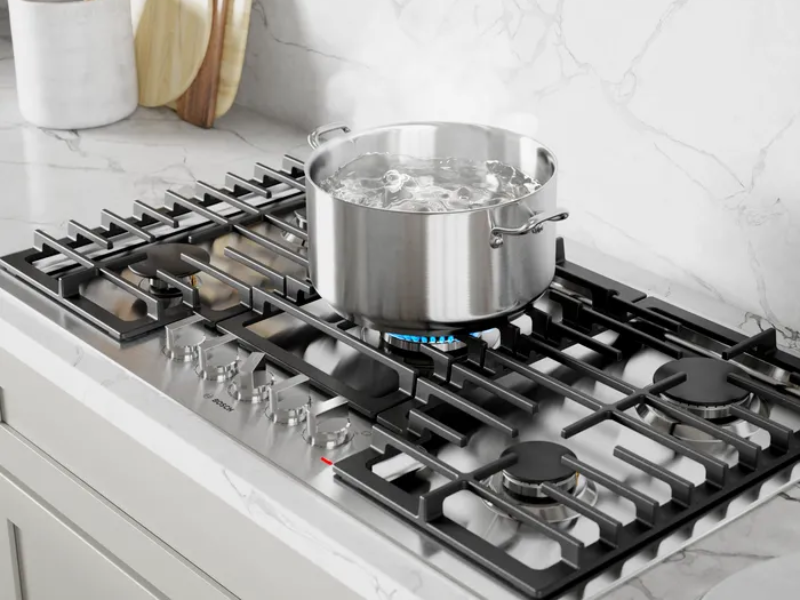

Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

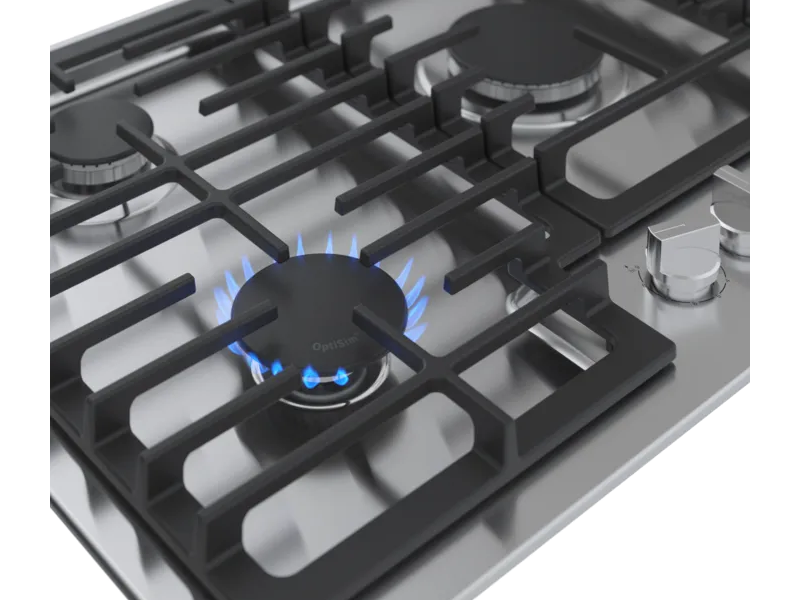

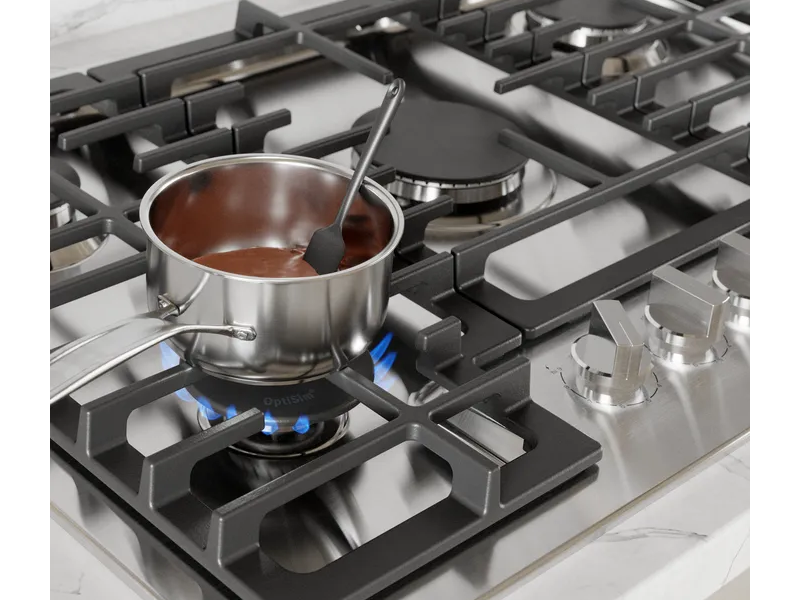

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

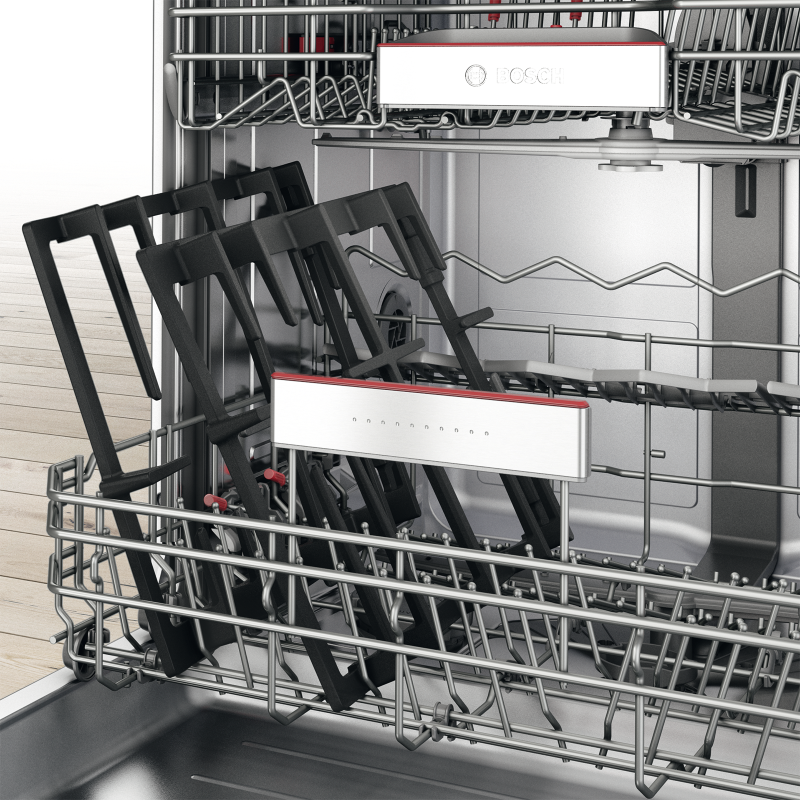

Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
Special Features
- 5 Burners:5 high-efficiency gas burners allow you to cook multiple dishes at once
- Residual Heat Indicator:Shows an H for Hot and h for warm residual heat on the cooking surface for added safety
- Continuous Cast Iron Grates:makes it easy to slide pots & pans from burner to burner.

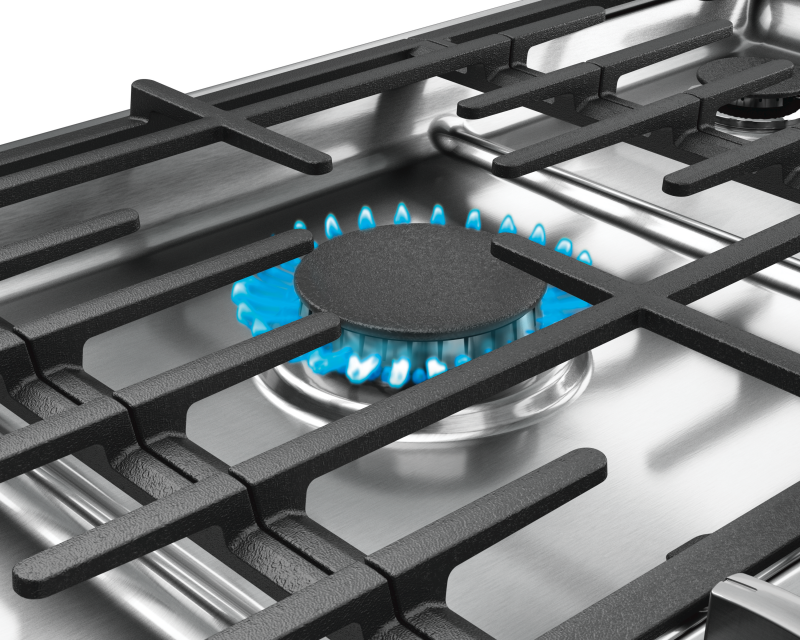

- Sealed Burners:help keep food and liquids on the cooktop surface for easier cleanup.

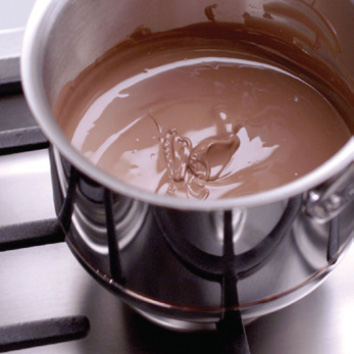

- OptiSim® Burner:the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
| General Properties | |
|---|---|
| Number of Burner | 5 |
| Knob color | Stainless steel appearance |

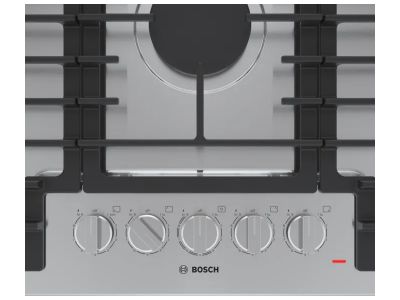

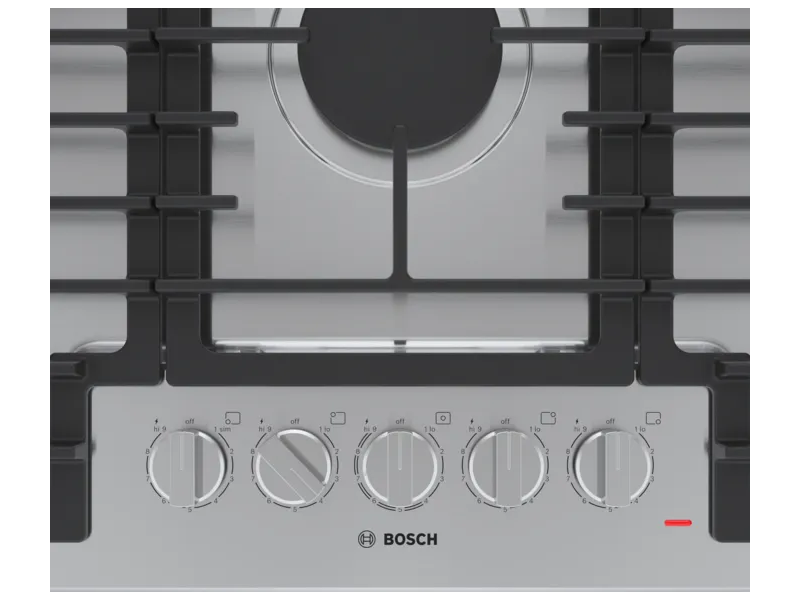

| Control location | Front-center |
| Sealed burners | Yes |
| Valves | Gas |
| Ignition system | Electronic; thermocouple flame monitor control |
| Surface | Stainless steel |
| Grate material | Cast iron |
| Grate features | Continuous grates |
| Element Performance | |
| Total BTU load (NG / LP) | 41,700 / 41,700 |
| Power of front left burner (NG / LP) | 3,400 / 3,400 |
| Power of back left burner (NG / LP) | 6,000 / 6,000 |
| Power of center burner (NG / LP) | 16,000 / 16,000 |
| Power of back right burner (NG / LP) | 10,300 / 10,300 |
| Power of front right burner (NG / LP) | 6,000 / 6,000 |
| TECHNICAL DETAILS | |
| Circuit breaker | 15 A |
| Volts | 120 V |
| Frequency | 60 Hz |
| Plug type | 3-prong |
| Power cord length | 40" |
| Energy source | Natural Gas (factory set) |
| Convertible to LP (kit required) | Yes |
| Dimensions & Weight | |
| Overall appliance dimensions (HxWxD) | 4 1/2" x 37" x 21 1/4" |
| Required cutout size (HxWxD) | 2" x 34 15/16" x 19 1/8 |
| Minimum distance from counter front | 1 7/8" |
| Minimum distance from rear wall | 3" |
| Net weight | 57 lbs |
| Accessories—Included | |
| Included | LP Conversion Kit, OptiSim® Cap |
