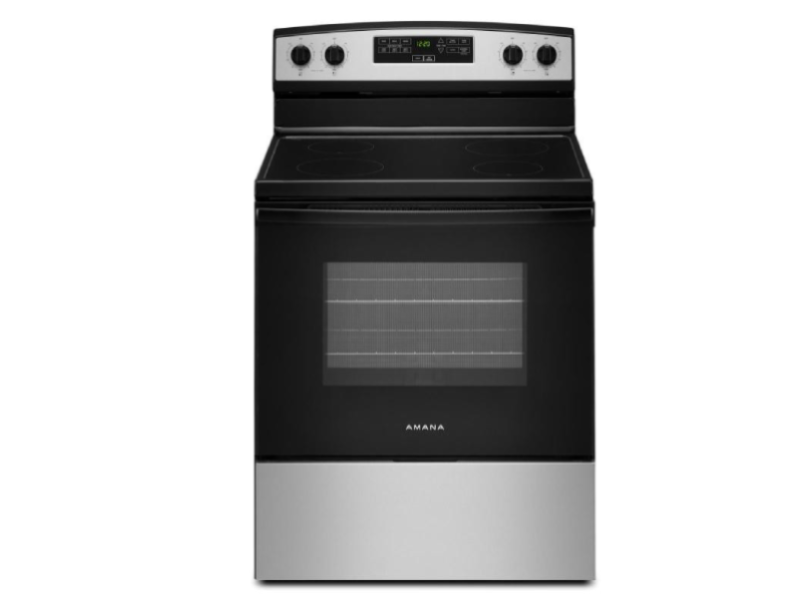

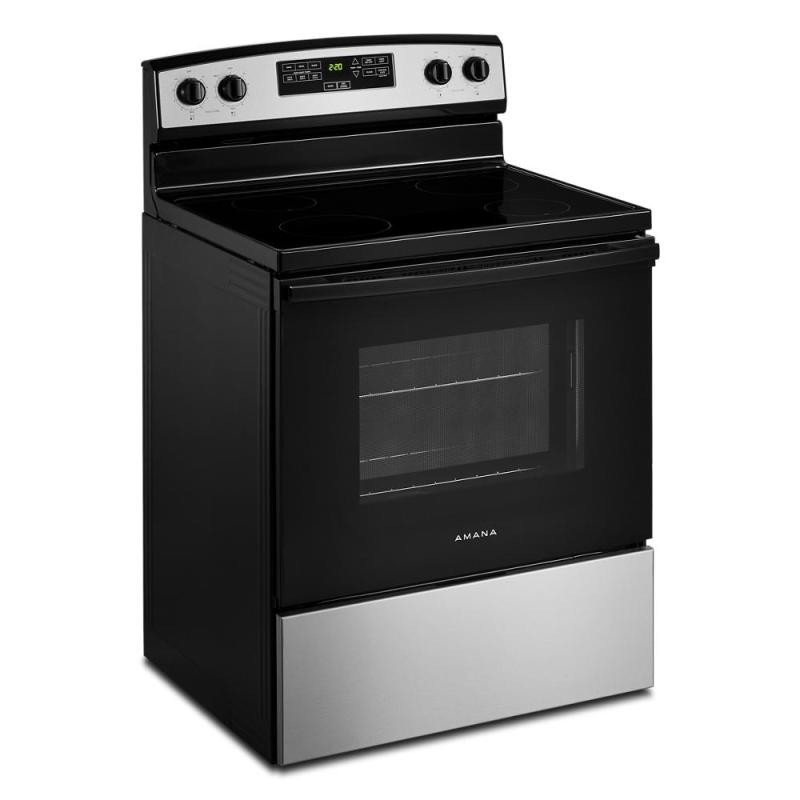

30" Amana 4.8 Cu. Ft. Electric Range with Extra-Large Oven Window - YAER6203MSS

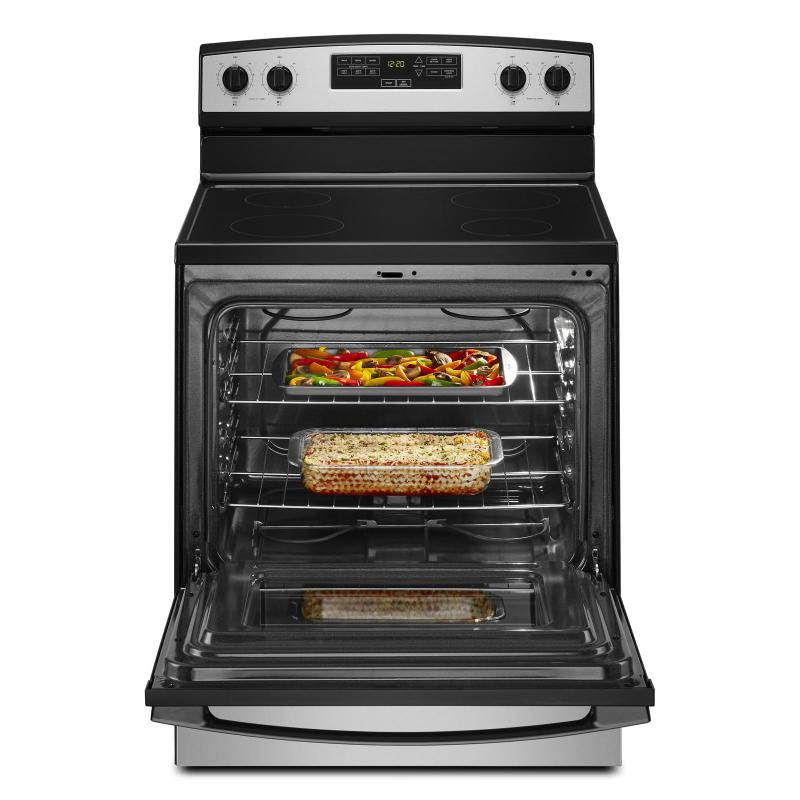

Large Oven Capacity (4.8 Cu. Ft.)
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.

Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

Temp Assure™ Cooking System
Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
This 30-inch Amana® Electric Range comes with Bake Assist Temps to help you get dinner going. Simply choose a preset temperature setting to get started. Or set your bake or broil temperatures with Easy Touch Electronic Controls Plus, which are extra-large and easy-to-read. And when you need to know how your dinner is doing without opening the oven door, the Extra-Large Oven Window lets you see and savour.
Features
Top 3 Features
Large Oven Capacity(4.8 Cu. Ft.)
Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
Temp Assure™ Cooking System
Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
Additional Features
Storage Drawer
This Storage Drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
Warm Hold
Use the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
Oven Lockout
Oven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.

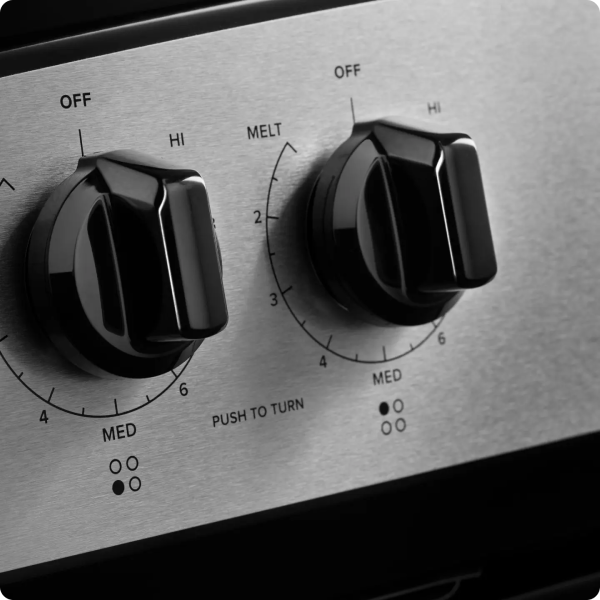

| CONTROLS | |
|---|---|
| Knob Type: | Plastic |
| Control Type: | Knobs |
| Knob Color: | Black |
| Features | |
| Heating Element On Indicator Light: | Yes |
| Hot Surface Indicator Light | Yes |
| Power Outage Compatible: | No |
| Griddle: | No |
| Description | |
| Range Type: | Freestanding |
| Electrical | |
| Volts: | 120 |
| Hz: | 60 |
| Power Cord Included: | Yes |
| Amps: | 40 |
| Energy | |
| Annual Energy Usage Kwh: | 494 |
| Certifications | |
| UL: | Yes |
| CUL: | Yes |
| Energy Rating Kwh Year: | 494 |
| DETAILS | |
| Broiler Location: | Top of Oven |
| Cooktop Surface Material: | Porcelain Coated Steel |
| Oven Light Switch Location: | Oven Control |
| Interior Color: | Grey |
| Number Of Oven Racks: | 2 |
| Oven Cooking System | Thermal |
| Number Of Rack Guides: | 5 |
| Bake Element Power: | 2400W |
| Broiler Element Power: | 3400W |
| Hidden Bake Element: | No |
| Number Of Oven Lights: | 1 |
| Oven Interior Depth In Inches: | 18.5 |
| Oven Interior Width In Inches: | 24.5 |
| Oven Light Type: | Incandescent |
| Oven Control Type: | Electronic Touch |
| Oven Control Location: | Rear Control |
| Convection Element Type: | None |
| Cleaning Type | Manual Clean |
| Convection Functions: | No |
| Configuration and Overview | |
| Fuel Type: | Electric |
| Specifications | |
| Dishwasher Safe: | No |
| Extended Service Plan Parent: | EW05IW1Y, EW05IW2Y, EW05IW4Y |
| Exterior | |
| Door Removable: | Yes |
| Handle Type: | Reach Through Handle |
| Drawer Type | Storage Drawer |
| Handle Material: | Plastic |
| Handle Color | Black |

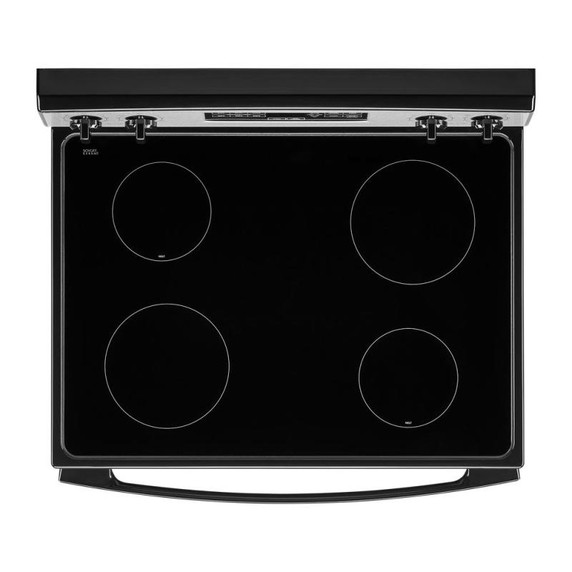

| Cooktop Details | |
| Cooktop Control Type: | Knobs |
| Cooktop Surface Color: | Black |
| Cooktop Configuration: | All Burners |
| Cooktop Element Style: | Ceran |
| Left Rear Element Burner Power: | 1200W |
| Left Rear Element Burner Size: | 6in. |
| Left Rear Element Burner Type | Standard |
| Number of Burner | 4 |
| Right Rear Element Burner Type: | Standard |
| Cooktop Control Location: | Backguard |
| Left Front Element Burner Size: | 8in. |
| Left Front Element Burner Type: | Standard |
| Right Front Element Burner Size | 6in. |
| Right Front Element Burner Type: | Standard |
| Right Rear Element Burner Size: | 8in. |
| Left Front Element Burner Power: | 1800W |
| Right Front Element Burner Power | 1200W |
| Dimensions | |
| Carton Depth: | 29.0" |
| Carton Height | 48.75" |
| Carton Width | 32.0" |
| Gross Weight | 152.0 lbs. |
| Cutout Depth | 24.0" |
| Cutout Height | 36.0" |
| Cutout Width | 30.0" |
| Depth Closed Excluding Handles | 25.31" |
| Depth | 27.75" |
| Height | 46.88" |
| Width | 29.88" |
| Depth Closed Including Handles | 27.75" |
| Depth With Door Open 90 Degree: | 46.69" |
| Maximum Height | 47.88" |
| Minimum Height | 46.88" |
| Capacity | 4.8 |
| Net Weight | 135 lbs. |
