With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.
Overview
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe
- Gas cooktop with a griddle and six burners that deliver up to 19,000 BTU for fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Use the food probe to monitor your cooking real time
Features and Benefits

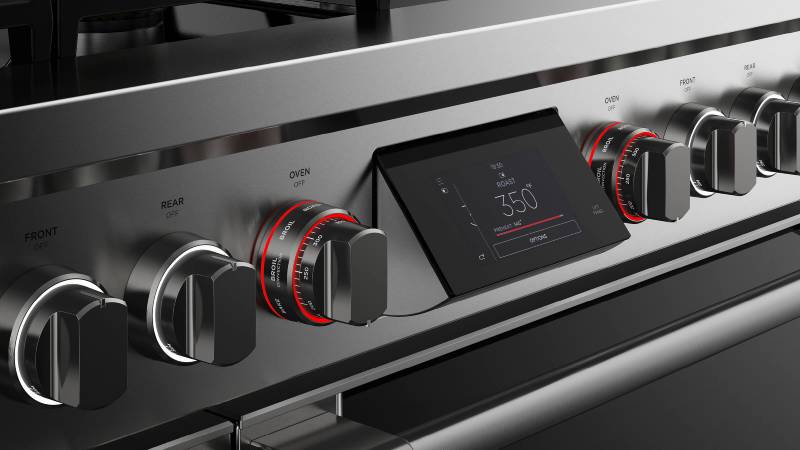

Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous capacity
Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
Cooking flexibility
No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.

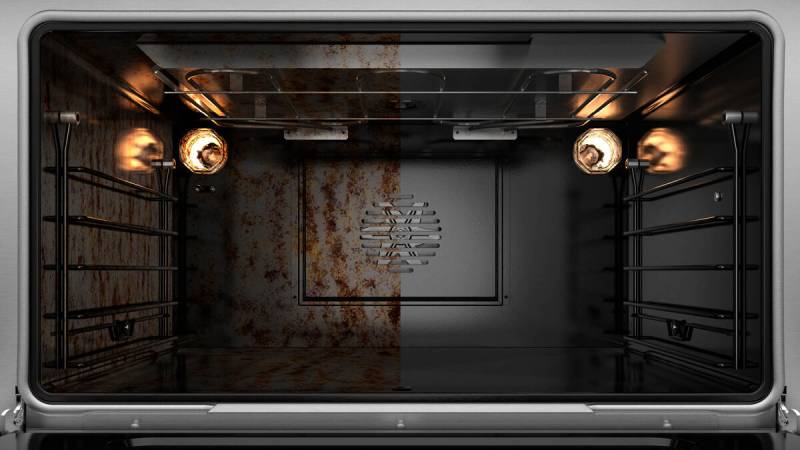

Easy to clean
The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
| Accessories | |
|---|---|
| Adjustable feet covers | Yes |
| Branded coin end cap | Yes |
| Telescopic sliding runners | Yes |
| Accessories (sold separately) | |
| Square handle option | AH-R48 |
| Burner ratings | |
| Maximum burner power | 19000 BTU |
| Power back centre | 13000BTU |
| Power back left | 13000BTU |
| Power back right | 13000BTU |
| Power front centre | 15000BTU |
| Power front left | 19000BTU |
| Power front right | 15000BTU |
| Power griddle | 15000BTU |
| Total cooktop power | 103000 BTU |
| Capacity | |
| Shelf positions (main oven) | 5 |
| Shelf positions (second oven) | 5 |
| Total capacity (main oven) | 4.8cu ft |
| Total capacity second oven | 2.1cu ft |
| Usable capacity (main oven) | 3.8cu ft |
| Cleaning | |
| Easy clean porcelain basepan | Yes |
| Pyrolytic proof shelf runners | Yes |
| CONTROLS | |
| Dial with illuminated halo | Yes |
| Dual control oven dials | Yes |
| High resolution display | Yes |
| Multi-language interface | Yes |
| Precise cooking with food probe | Yes |
| Recipe and food based functions | Yes |
| Sabbath mode | Yes |
| Tilting touch screen interface | Yes |
| Wi-Fi connectivity | Yes |
| Gas Requirements | |
| Fitting and pipe | |
| Supply Pressure (LPG) | 11 to 14 W.C |
| Oven Features | |
| Auto re-ignition system | Yes |
| Concealed element | Yes |
| Electronic oven control | Yes |
| Food probe | Yes |
| Full extension telescopic sliding shelves | Yes |
| Internal light | Yes |
| Large broil pan | Yes |
| Self-clean proof side racks | Yes |
| True convection | Yes |
| Oven functions | |
| Air fry | Yes |
| Bake | Yes |
| Broil | Yes |
| Classic bake | Yes |
| Clean | Yes |
| Convection Broil | Yes |
| Convection bake | Yes |
| Dehydrate | Yes |
| Maxi Broil | Yes |
| Number of functions | 15 |
| Pastry bake | Yes |
| Pizza bake | Yes |
| Rapid proof | Yes |
| Roast | Yes |
| Slow cook | Yes |
| True convection | Yes |
| Warm | Yes |
| Power Requirements | |
| Amperage | 50A |
| Rated current | 50A |
| Supply frequency | 60Hz |
| Supply voltage | 120⁄208, 120⁄240V |
| Product Dimensions | |
| Depth | 29 1⁄8 |
| Height | 35 3⁄4 - 36 3⁄4 |
| Width | 47 7⁄8 |
| Rangetop features | |
| Sealed range top | Yes |
| Vent trim included | Yes |
| Rangetop Performance | |
| Number of burners | 6 |
| Recommended Back Guards Ventilation | |
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48 Professional Range Hood, Dual Blower) |
| SAFETY | |
| ADA compliant | Yes |
| Child lock | Yes |
| Secondary oven features | |
| 3/4 Extension racks | 2 |
| Concealed element | Yes |
| Electronic oven control | Yes |
| Food probe | Yes |
| Internal light | Yes |
| Secondary oven functions | |
| Air fry | Yes |
| Bake | Yes |
| Classic bake | Yes |
| Convection bake | Yes |
| Convection broil | Yes |
| Maxi broil | Yes |
| Number of secondary oven functions | 11 |
| Pastry bake | Yes |
| Pizza bake | Yes |
| Rapid proof | Yes |
| Roast | Yes |
| Warm | Yes |
| Warranty | |
| Parts and labour | Limited 2 years |
