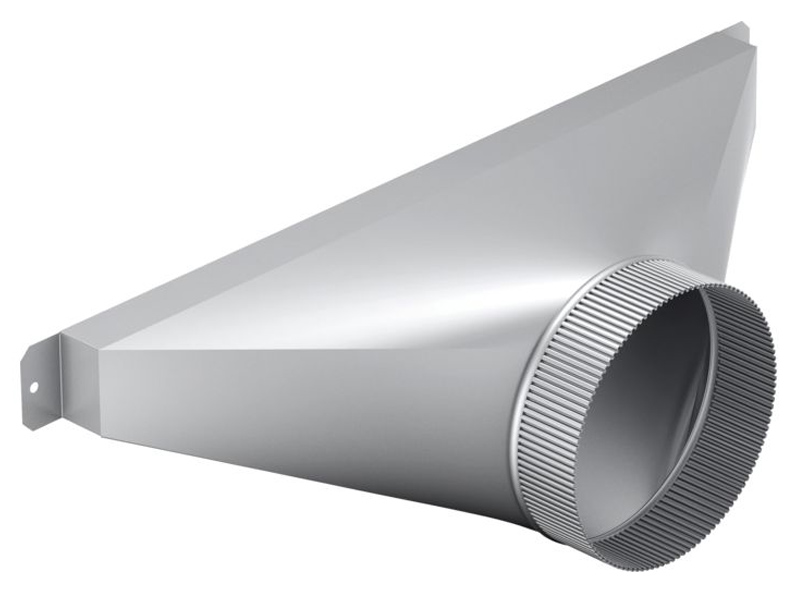

Bosch 6" Side/Rear Transition for Downdraft - HDDSTRAN6
WAS $263.00
$219.00 CAD
Literature
6" Round Transition Enable Ducting To Be At Sides Or Rear Of Downdraft For Flexible Configurations To Maximize Your Kitchen Design
- Flexible Transition Design Allows For Left, Right Or Rear Venting
- For Use With Downdraft Inline And Remote Blowers With 6" Round Duct
- Some Blower Positions May Need Deeper Cabinets. See Installation Guide
Design
- Customize The Direction Of Duct Discharge To Be Left, Right, Or Rear

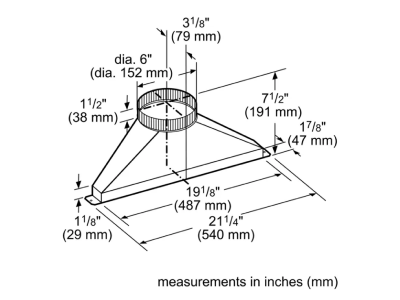

- Rectangular 1-7/8" x 19" Transition To 6" Round
- Ability To Use With Ducting Or Elbows With 6" Round Duct Connection
- Some Blower Positions May Need Deeper Cabinets. See Installation Guide
Performance
- Ability To Use With DHG6105NUC Inline or DHG6023RUC Remote Blowers
| Technical Data | |
|---|---|
| Brand | Bosch |
| Name of product image | MCSA02476000_i3921_1849304_CVTSIDE6_def.jpg |
| Construction type | Built-in |
| Height of the packed product (mm) | 318 mm |
| Width of the packed product (mm) | 311 mm |
| Depth of the packed product (mm) | 641 mm |
| SKU | HDDSTRAN6 |
| Product name / series name | product line supplement cooker hood |
| EAN code | 4,242,002,910,758 |
| Gross weight (kg) | 1.36 kg |
| Height of the product (mm) | 32 mm |
| Product group | Hood |
| UPC code | 825225920731 |
| EAN Barcode | ' 2E20AC-jbahfi |
| Standard number of units per pallet | 20 |
| Internal article number | 000000000000777720 |
| Net weight (kg) | 1.214 kg |
| Product group for which the accessory is available | Hood |
| Product packaging dimensions (HxWxD) (mm) | 317 x 311 x 641 mm |
| Other data | |
| EAN Barcode | ' 2E20AC-jbahfi |
| Standard number of units per pallet | 20 |
| Country of origin | US |
| Product packaging dimensions (HxWxD) (mm) | 317 x 311 x 641 mm |
