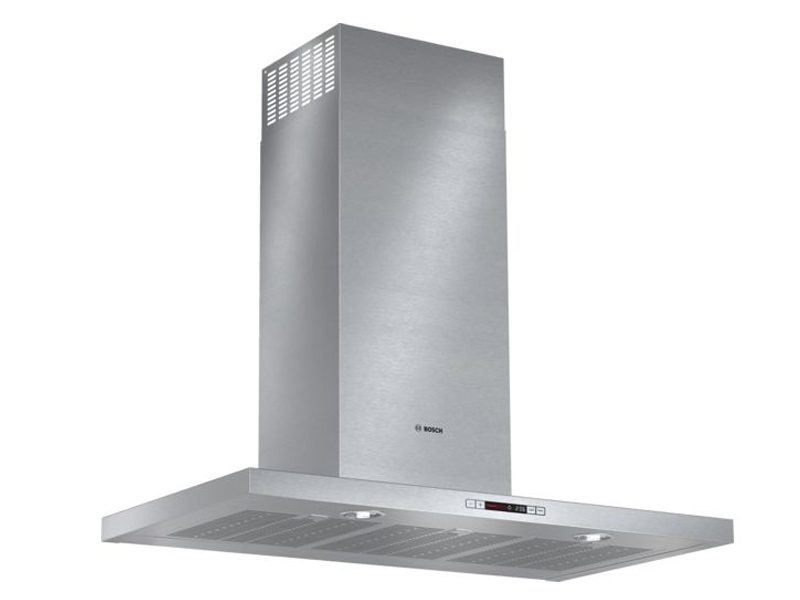

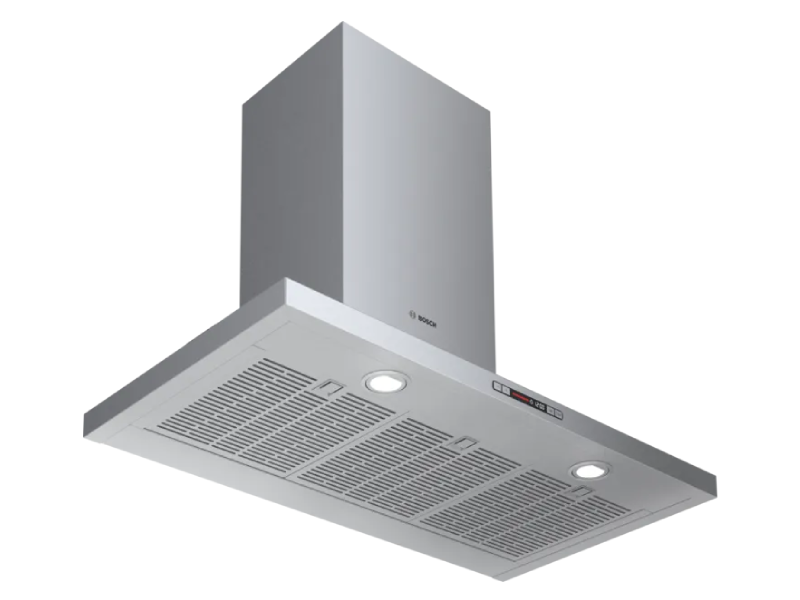

36" Bosch 500 Series Box Canopy Chimney Hood Stainless Steel-HCB56651UC

HCB56651UC

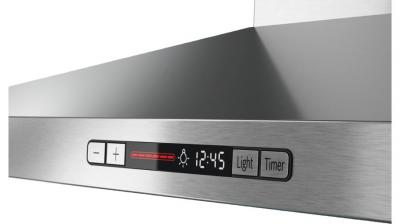

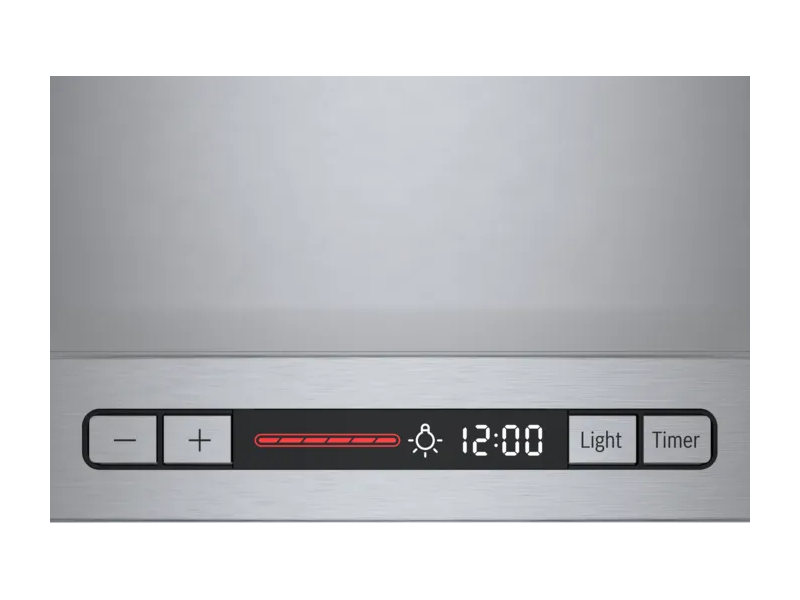

Touch Controls with LCD Display Four Speed Touch Controls with LCD Display Converts to Recirculation Mode with Accessory Kit (Separate Purchase Required) 600 CFM Centrifugal Integrated Blower Included Dishwasher Safe Filters with Stainless Steel Covers

Design

Duct Extension Accessory Kit Available for 9' to 12' Ceilings

Performance

  • 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base

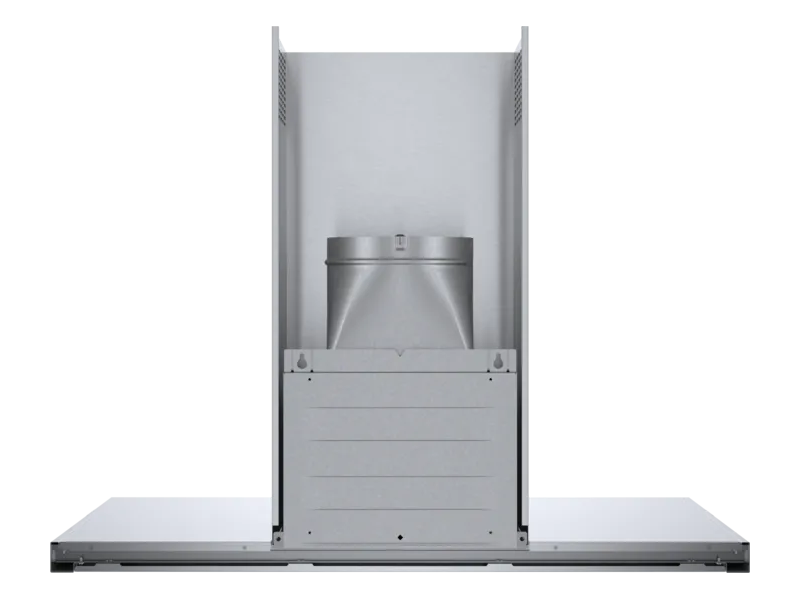

  • 8" round duct at discharge.

Efficiency

  • Blower will automatically turn on at high speed if excessive heat is sensed in the control area.
  • Absorb odors with charcoal replacement filters.

Convenience

  • Convenient timer built into control from 1-60 minutes.
  • Signal on LCD display will illuminate as a reminder to check filters for cleaning.
  • Audible tone when select controls are pressed.
General Properties
Gross weight (kg)28.000 kg

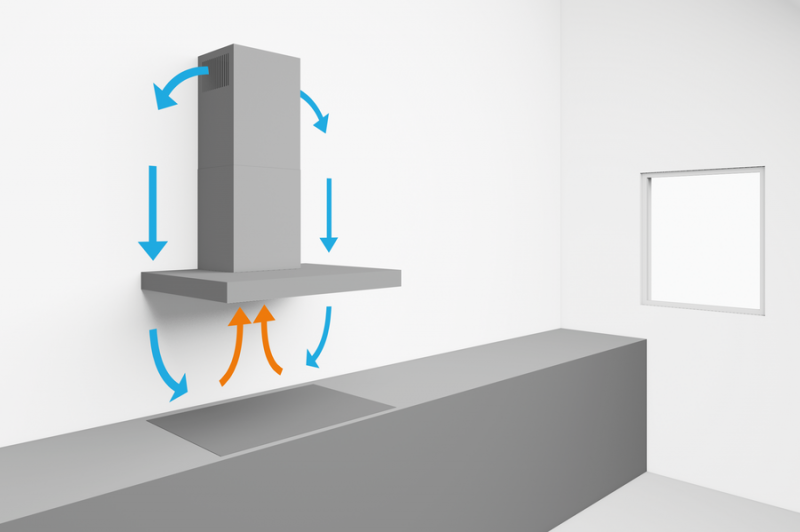

Operating ModeConvertable: Ducted / Recirculating
Number of speed settings4-stage
Motor locationIntegrated motor in hood chimney
Number of lights2
Type of lamps usedHalogen
Total power of the lamps (W)40 W

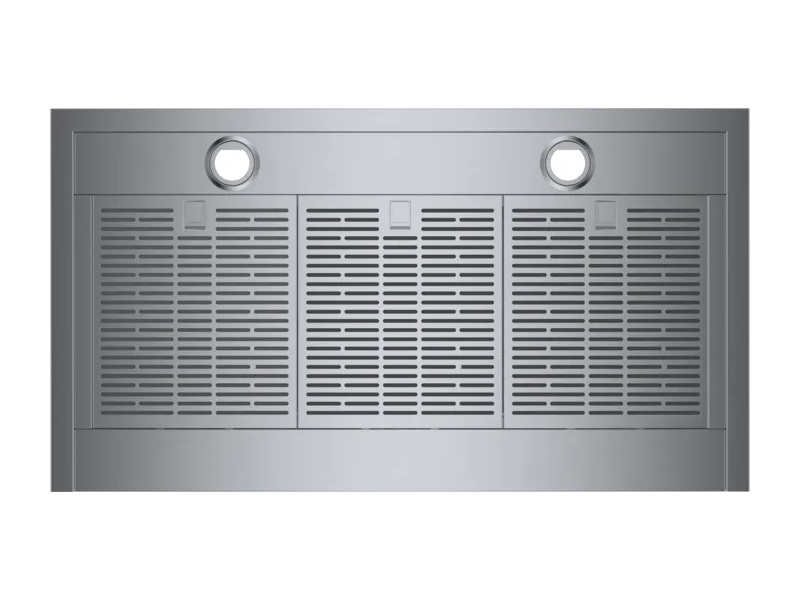

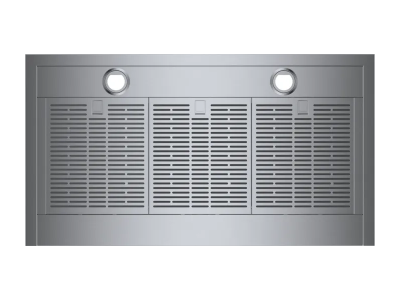

Grease filter typeMultilayer cassette
Grease filter materialWashable stainless steel
Certifications
Approval certificatesCUL, UL
Installation Requirements
Watts (W)530 W
Volts (V)110 V
Frequency (Hz)60 Hz
Plug typeNo plug

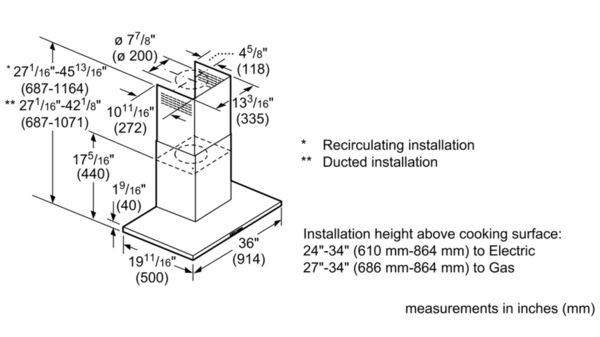

Dimensions & Weight

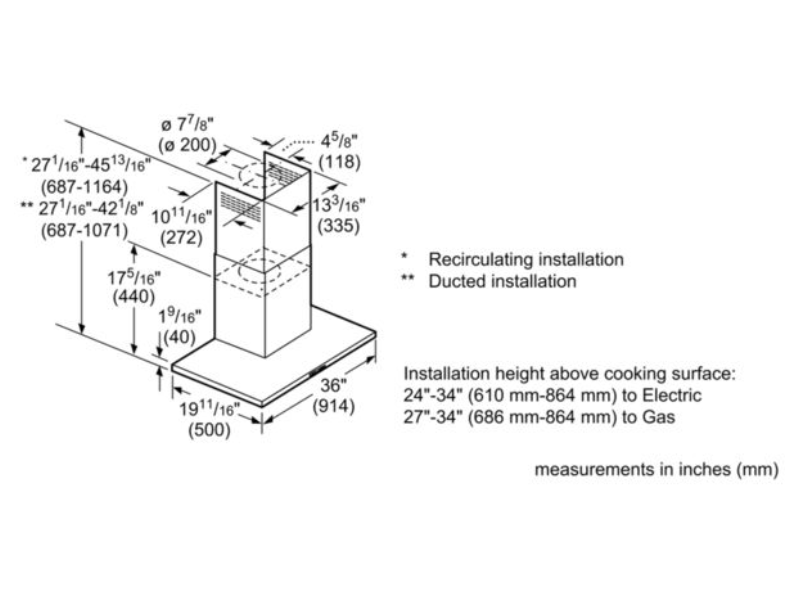

Overall appliance dimensions (HxWxD) (in)27 1/16' - 42 1/8 ' / 27 1/16" - 45 13/16" x 36' x 19 11/16'
Product packaging dimensions (HxWxD) (in)26.25 x 39.99 x 17.99
Height of the chimney (in)25 1/2' - 40 9/16'/25 3/8" - 44 1/4"
Required distance above cooktop/ranges24'/27'
Diameter of air duct (in) top8
Net weight (lbs)55 lbs
Gross weight (lbs)62 lbs
