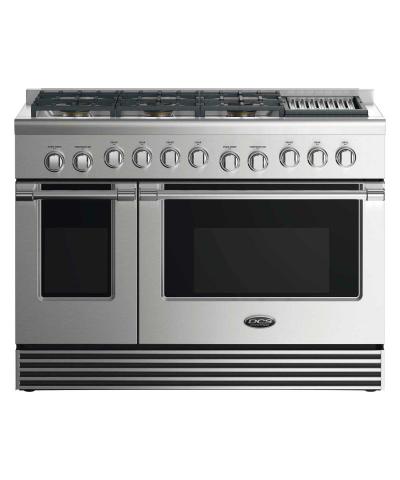

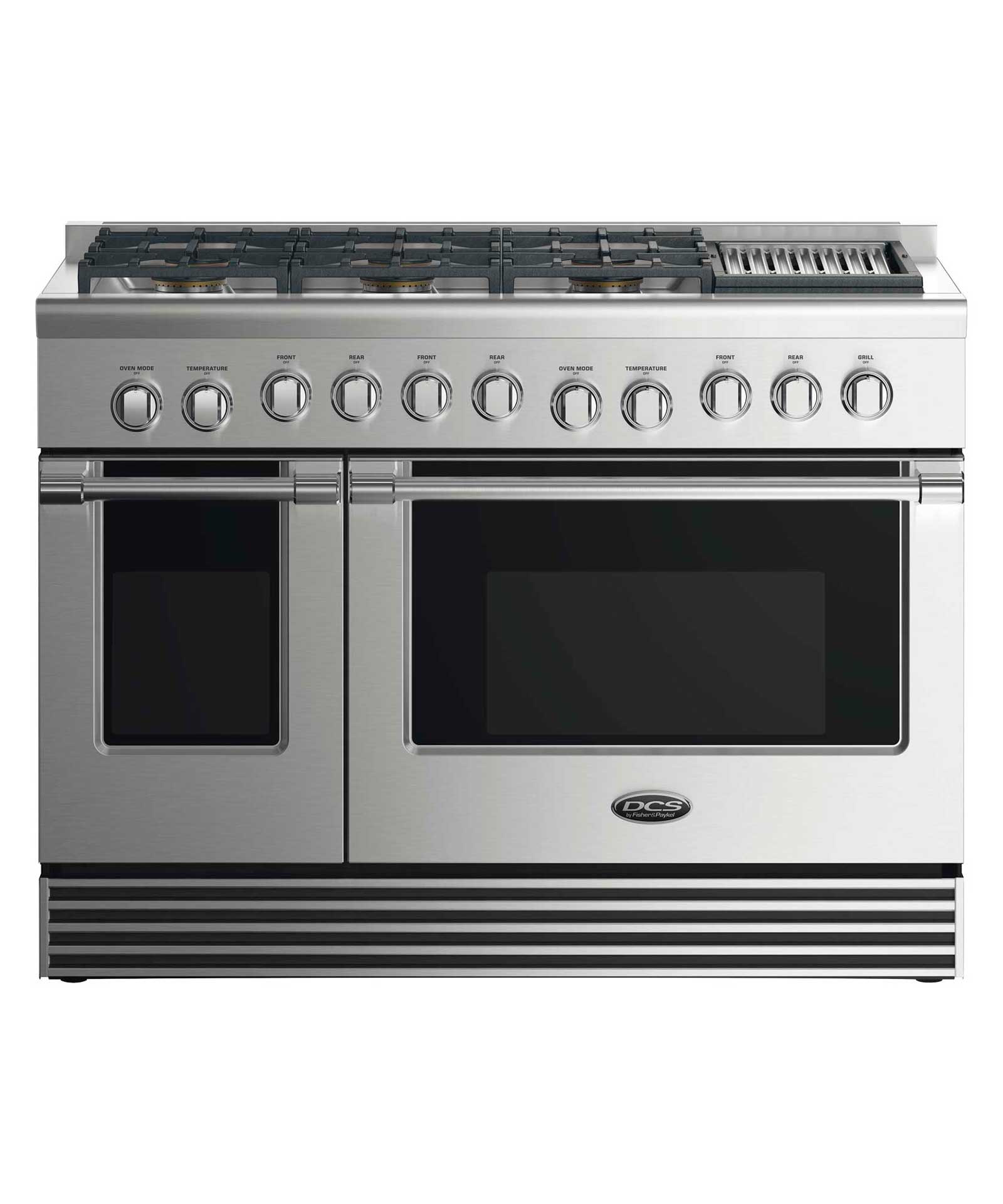

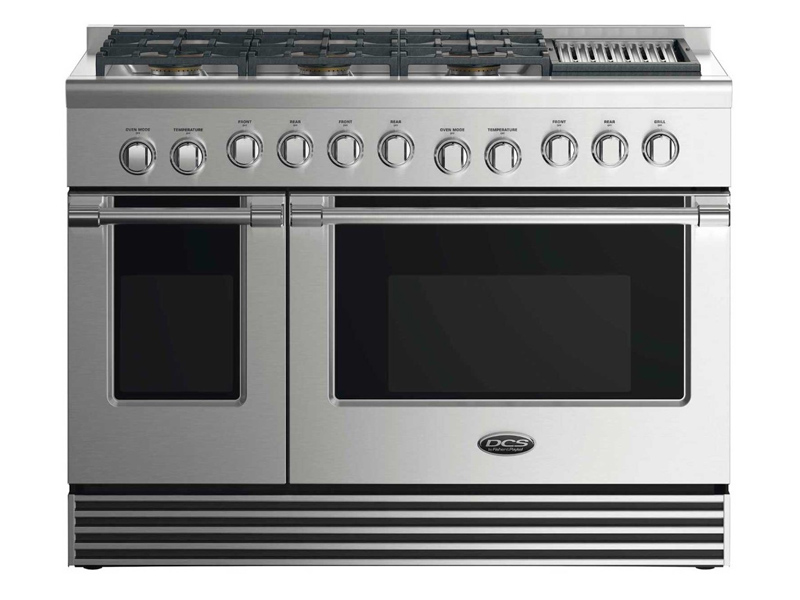

48" DCS Dual Fuel Range 6 Burners With Grill - RDV2486GLL

Category : Ranges


Dual Fuel Ranges are built for the cook who loves the power and immediacy of a gas cooktop but demands the precise performance of true convection cooking and the ease of a self-cleaning electric oven. DCS cooktops have unique, patented Dual Flow Burners that let you fire up a fierce heat in an instant -- and just as quickly turn it down to a precise full surface simmer with the gentlest of flames. Cooktop burner powers reach up to 19,000 BTU with total surface output reaching up to 98,000 BTU. The oven's true convection system uses both the fan and heat element together to actively distribute accurate temperatures throughout the oven.

Perfect Heat

Sealed Dual Flow Burners deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames. The true convection system uses both the fan and heat element together to heat up quickly and actively distribute even temperatures throughout the oven.

Total Control

From the highest to the lowest temperature settings you get precise control with the halo-illuminated cooktop dials. DCS Range ovens have True Convection and electronic oven control for precise and consistent oven temperatures delivering superior performance.

Consistent Broiling

The DCS Dual Fuel Range broiler provides an even heat that covers a very large surface area -- perfect for browning a fully loaded oven tray.

Easy to Clean

A continuous sealed cooktop surface and a pyrolytic self-cleaning oven with removable side racks allow easy cleaning.

Information at a Glance

LED halo control dials for information at a glance. White -- heating up; orange -- temperature is reached; red -- self-cleaning mode.

Cooking Flexibility

Delivering 12% more usable space than models with exposed bake elements, and a full extension telescopic racking system, this oven is large enough to hold full size baking sheets or a 20lb turkey. The cooktops unique grate design and high powered burners puts the flame where you need it and lets you boil faster or simmer gently anywhere on the cooktop. Models with grills have DCS Grease Management System grease channeling technology with double sided cast 304 grade stainless steel grates that drain fat during cooking and help reduce smoke output.

Kitchen Family Match

Handle options to suit any kitchen and designed to match the DCS professional kitchen family.



Accessories sold separately
Recommended hoodVS48-48" Pro Hood
Square handle optionAH-R48
Burner ratings
Max burner power19000BTU
Power back centre13000BTU
Power back left13000BTU
Power back right13000BTU
Power front centre15000BTU
Power front left19000BTU
Power front right15000BTU
Power grill10000BTU
Simmer on all burners140°F
Total cooktop power98000BTU
Dual Flow Burners6
Main oven- Total Capacity (AHAM)4.8cu ft
Secondary Oven- Shelf positions5
Secondary Oven- Total Capacity (AHAM)2.1cu ft
Secondary oven- 3/4 extention racks2
Shelf positions5
Cooking Modes
Main oven functions6
Secondary oven functions3
Gas Requirements
Pressure11" to 14" W.C
Depth (excluding handle and dials)29 1/8"
Height (excluding vent trim)35 3/4 - 36 3/4"
Main oven bake4600W
Main oven broil4000W
Secondary oven bake2450W
Secondary oven broil3600W
True Convection Oven2500W
Main oven- Full extention telescopic racks3
WarrantyLimited 2 Years Parts & Labor
