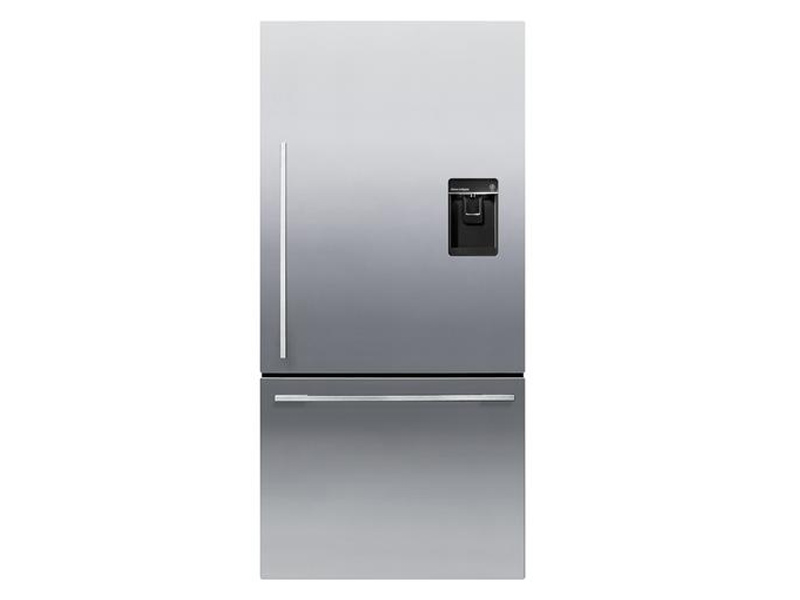

31" Fisher & Paykel 17 Cu. Ft. ActiveSmart Counter Depth Bottom Freezer With Ice And Water - RF170WDRUX5
Literature
You may also like
This fridge has been designed for what you use most often. The upper refrigerator enables easy access toeveryday items. The 17 cu. ft. Bottom Mount includes ergonomic storage bins and glass shelves that can be configured to suit every lifestyle. The lower drawer-based freezer ensures that longer-term storage items are just as easy to access.
Configuration
- Adjustable glass shelves
- Adjustable roller feet
- Clear freezer bins :: 3
- Counter depth
- Covered door shelves :: 2
- Four shelves (incl above vegetable area)
- Front levelling feet
- Full extension freezer drawer
- Full extension runners
- Full width adjustable door shelves :: 2
- Half width adjustable door shelves :: 2
- Humidity controlled half-width crisper bins :: 2
- Ice bin and scoop
- Rear rollers
- Roll out freezer tray
- Single bottle holders :: 2
Consumption Data
- Energy usage (kWh/yr) :: 535
- Premium Energy Efficiency - Energy Star
Design
- Bottom mount freezer
- Concealed hinge
- Door opening :: Available left and right
- EZKleen stainless steel
- Flat door design
- Silver prepaint cabinet
- Stainless steel doors
- Straight designer handle
Dimensions
- Height - incl. feet and hinge cap :: 67 1/2in
- Width :: 31 1/8in
- Depth - including handle :: 28 3/4in
- Depth - door closed not including handle :: 27 3/8in
- Minimum air clearance - each side :: 3/4in
- Minimum air clearance - at rear (incl. compressor tray) :: 1 1/8in
- Minimum air clearance - on top :: 2in
- Refrigerator volume :: 12.3 cu.ft
- Freezer volume :: 4.8 cu.ft
- Total gross volume :: 17.1 cu.ft
Performance Features
- ActiveSmart™ system
- Adaptive defrost
- Bottle chill
- Built in ice maker
- Door alarm - freezer
- Door alarm - refrigerator
- Electronic interface
- External water dispenser
- Fast freeze
- Frost free
- Humidity Control System
- Ice Boost
- Internal ice maker
- LED lighting
- Multi air ducts
- Sabbath Mode
- Smart Touch control panel
- Ultraslim water dispenser
Warranty
- 2 year parts & labour warranty, plus additional 3 year sealed system parts warranty
| Specification | |
|---|---|
| Length | 27.38 |
| Width | 31.09 |
| Height | 67.53 |
| Counter Depth | Yes |
| French Door | No |
| Freezer Capacity (cu. ft.) | 4.8 |
| Refrigerator Capacity (cu. ft.) | 12.3 |
| Total Capacity (cu. ft.) | 17.1 |
| Overall Height (inches) | 67.5 |
| Overall Depth (inches) | 28.75 |
| Width (inches) | 31.12 |
| Installation Type | Freestanding |
| Defrost Type | Automatic |
| Freezer Interior Light | Yes |
| Freezer Location | Bottom |
| Number of Freezer Baskets/Shelves | 3 |
| Number of Refrigerator Shelves/Bins | 6 |
| Number of Refrigerator Door Shelves/Bins | 6 |
| Crisper Type | Humidity Controlled |
| Can Dispenser | No |
| Refrigerator Interior Light | Yes |
| Refrigerator Shelves Material | Glass |
| Water Dispenser | Yes |
| Ice Maker | Yes |
| Ice Dispenser | No |
| Deli Drawer | Yes |
| Reversible Door | No |
| Type | Built-In Bottom Freezer |
