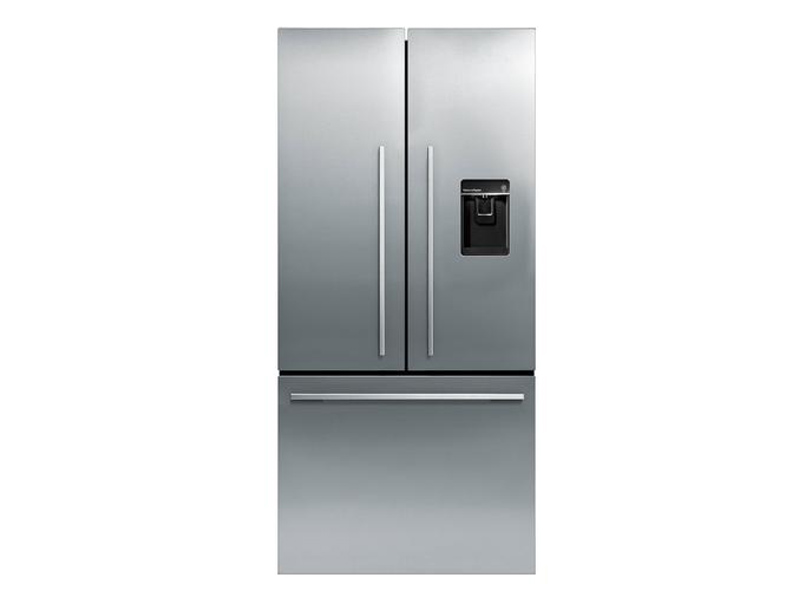

31" Fisher & Paykel 17 Cu. Ft. Active Smart Counter Depth French Door Refrigerator With Ice And Water - RF170ADUSX4
Literature
You may also like
This fridge has been designed to maximise space as well as access. French Door refrigerators bring theatre into the kitchen with unobstructed access to wide-open shelf spaces. Below, a spacious full-extension drawer and storage bins provide ergonomic solutions for freezer items.
Configuration
- Adjustable glass shelves
- Adjustable roller feet
- Clear freezer bins :: 3
- Counter depth
- Covered door shelves :: 2
- Front levelling feet
- Full extension runners
- Full width adjustable door shelves :: 2
- Gallon bottle storage shelves
- Half width adjustable door shelves :: 4
- Ice bin and scoop
- Rear rollers
- Single bottle holders :: 4
- Three shelves (incl above vegetable area)
- Full extension freezer drawer
Consumption Data
- Energy usage (kWh/yr) :: 585
Design
- Concealed hinges
- EZKleen stainless steel
- Flat door design
- French Door refrigerator
- Straight designer handle
Dimensions
- Depth - door closed not including handle :: 27 3/8in
- Freezer volume :: 4.8 cu.ft
- Height - incl. feet and hinge cap :: 67 1/2in
- Minimum air clearance - at rear (incl. compressor tray) :: 1in
- Minimum air clearance - each side :: 1in
- Minimum air clearance - on top :: 1 1/2in
- Refrigerator volume :: 12.1 cu.ft
- Total net volume :: 16.9 cu.ft
- Width :: 31 3/32in
Performance Features
- ActiveSmart™ system
- Adaptive defrost
- Bottle chill
- Built in ice maker
- Door alarm - freezer
- Door alarm - refrigerator
- Fast freeze
- Frost free
- Humidity Control System
- Humidity controlled fruit and vegetable bins :: 2
- Ice Boost
- Internal ice maker
- LED lighting
- Sabbath Mode
- Smart Touch control panel
- Soft close doors
- Ultraslim water dispenser
Warranty
- 2 year parts & labour warranty, plus additional 3 year sealed system parts warranty
| Dimensions | |
|---|---|
| Depth | 27 3/8" |
| Height | 67 17/32" |
| Width | 31 3/32" |
| Measurements | |
| Minimum air clearance - at rear | 1-3/16" |
| Minimum air clearance - each side | 13/16" |
| Consumption | |
| Energy usage | 585kWh/year |
| Capacity | |
| Freezer | 4.8cu ft |
| Refrigerator | 12.1cu ft |
| Total | 16.9cu ft |
| Warranty | |
| Parts & Labor | 2 years |
| Sealed system parts | 5 years |
| Accessories | |
| Stainless steel | Part number |
| surround kit | 24478 |
| Water filter | Part number 836848 |
| DETAILS | |
| UPC Code | 822843242641 |
| Refrigerator | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Fruit and vegetable bins | 2 |
| Stackable bottle holders | 4 |
