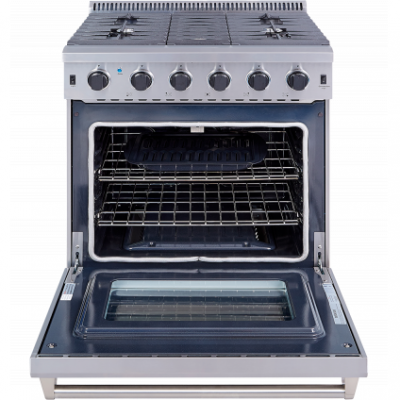

LRG3001U – 30 Inch Professional Gas Range
Introducing the Thor Kitchen LRG3001U – A 30 inch professional gas range featuring commercial convection fan, 4.5 cu.ft oven capacity, and a stainless steel finish.
FEATURES
- Black Porcelain Drip Pan for Easy Surface Cleaning
- Heavy Duty Continuous Cast Iron Cooking Grates
- Black ABS Knobs
- 4.55 cu.ft. Oven Capacity
- Grey Porcelain Oven Interior with White Flakes
- One Halogen Lights
- Commercial Convection Fan
- Three Layers Glass Window
- Storage Drawer at Bottom
| Product Dimension | |
|---|---|
| Product width | 30” |
| Product height (from bottom to top of back splash) | 36.29”-37.29” |
| Product height (from bottom to top of side panel) | 35.6”-36.6” |
| Product depth (from back panel to bullnose) | 28.31” |
| Product depth (from back panel to control board) | 27.04” |
| Product depth (from back panel to side panel front) | 24.77” |
| Depth of control panel (minimum) | 2.27” |
| Depth of control panel (bullnose) | 3.54” |
| Adjustable legs | not to exceed 1” |
| Specifications | |
| Required Cutout Size (W x D x H) (in) | 30 1/8” x 24.77” x 35.6(+1)” |
| BURNER PERFORMANCE | |
| Total Number of Range Top Burners | 5 Burners |
| Front Right (Single) | 8,000 BTU |
| Front Left (Single) | 18,000 BTU |
| Middle (Oval) | 9,000 BTU |
| Rear Right (Single) | 6,000 BTU |
| Rear Left (Single) | 4,000 BTU |
| Tube Broil burner | 10,000 BTU |
| U-shape burner (30” Oven) | 18,500 BTU |
| TECHNICAL DETAILS | |
| Fuel Type | Natural Gas / LP Convertible |
| Electrical Requirements | 120V |
| Circuit Breaker (A) | 15 or 20 A |
| Frequency (Hz) | 60 Hz |
| ACCESSORIES (NOT INCLUDED) | |
| LPKLRG3001U | Liquid Propane Gas Conversion Kit |
| RG1022 | Cast Iron Reversible Griddle |
