30" KitchenAid 6.4 Cu. Ft. 4-Burner Dual Fuel Downdraft Front Control Range - KSDG950ESS
Key Features
- Downdraft
- Even-Heat™ True Convection
- Steam Rack
Overview
Product Description
30-Inch 4-Burner Dual Fuel Downdraft Front Control Range
This all-in-one dual fuel range includes Downdraft, which integrates the ventilation system so a separate hood is not needed. Smoke and odours can be removed outside or filtered air can be recirculated inside. This range allows you to achieve flawless cooking results thanks to Even-Heat™ True Convection. The unique bow-tie design and convection fan ensure the entire oven is heated perfectly. It also has a Steam Rack that offers the ability to add moisture to the oven and enhances cooking results.
*Max Capacity Rack sold separately, W10554006. Griddle sold separately, W10432544
Features

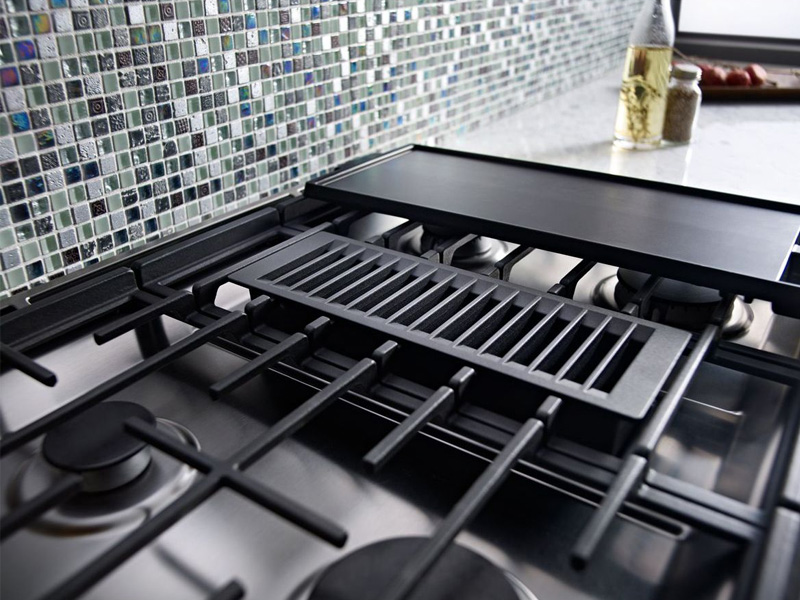

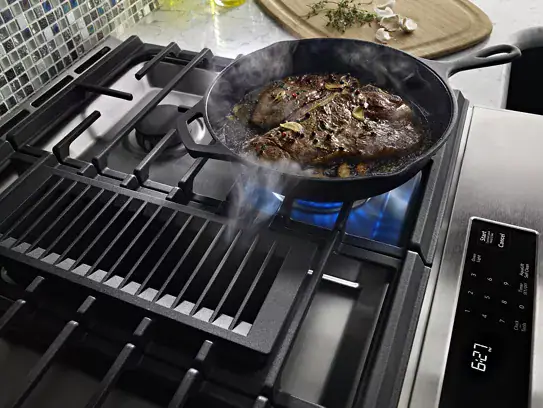

Downdraft
Integrates the ventilation system right into the range so that a separate hood is not needed. Smoke and odors can be removed and taken outside or air can be filtered and recirculated inside. A duct free kit can be purchased separately
Even-Heat™ True Convection
Produces flawless results. The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam Rack
Offers the ability to provide additional moisture to the inside of the oven, enhancing cooking results.
6.4 Cu. Ft. Capacity
EasyConvect™ Conversion
Takes the guesswork out of convection cooking by converting conventional settings for recipes to convection settings for you.
Additional Features

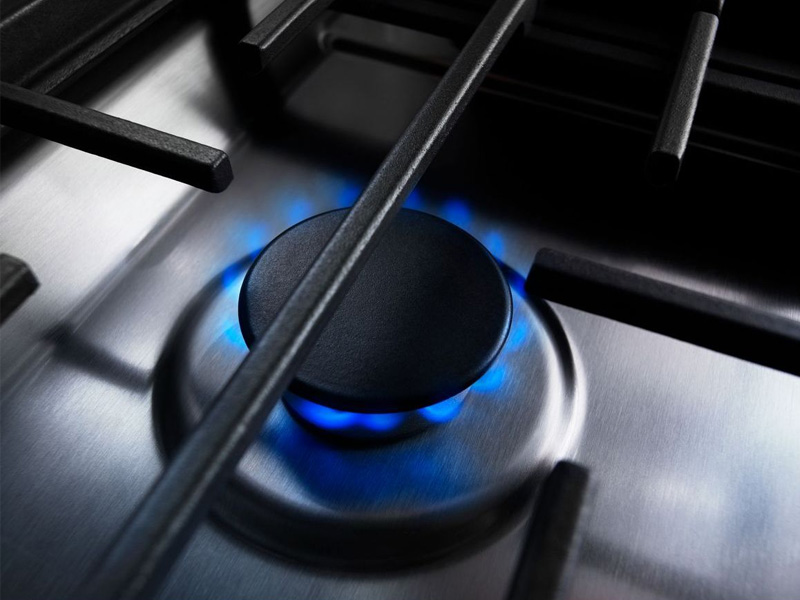

4 burners (5k, 9.2k, 15k and 17k)
Provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.
Aqualift®
Cleans your oven in less than an hour without odors and at a temperature below 200°F. This innovative system combines low heat with water to release baked-on spills.
Glass Touch Controls
Offer an intuitive, easy-to-use touch screen experience.
SatinGlide® Max Racks
Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Side Trim Accessory Kit
This optional accessory kit will cover damaged countertops and unfinished edges from an old slide- in range to make them beautiful again. Trim pieces come in black, white and stainless to seamlessly match your new range.
Max Capacity Rack (Sold separately)
The Max Capacity Rack dips down so you have plenty of room for cooking your largest dishes.
| Certifications | |
|---|---|
| ADA Compliant | ADA Height and Operation Compliant |
| UL | Yes |
| Exterior Details | |
| Door Type | Metal & Glass |
| Handle Color | Stainless Steel |
| Handle Material | Metal |
| Handle Type | Towel Bar |
| Knob Color | Stainless Steel |
| Knob Type | Metal |
| Oven Control Type | Electronic Touch |
| Oven Window Size | Large |
| Automatic Convection Conversion Temperature Adjust | Yes |
| Bake Element Power | 3600W |
| Broiler Element Power | 4000W |
| Broiler Location | Top of Oven |
| Convection Element Power | 3200 W, 3200 W, 3200 W, 3200 W |
| Convection Element Type | Single-Fan |
| Convection Functions | Bake, Broil, Roast |
| Door Removable | Yes |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Number of Oven Lights | 2 |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 7 |
| Cleaning Type | AquaLift® Self Clean |
| Oven Cooking System | Convection |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Incandescent |
| Oven Rack Type | 1 Steam Rack, 1 Gliding Roll-out Rack |
| Cooktop Details | |
| Auto Re-ignition | No |
| Cooktop Surface Color | Color Coordinated |
| Cooktop Surface Material | Stainless Steel |
| Griddle Included | No |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |

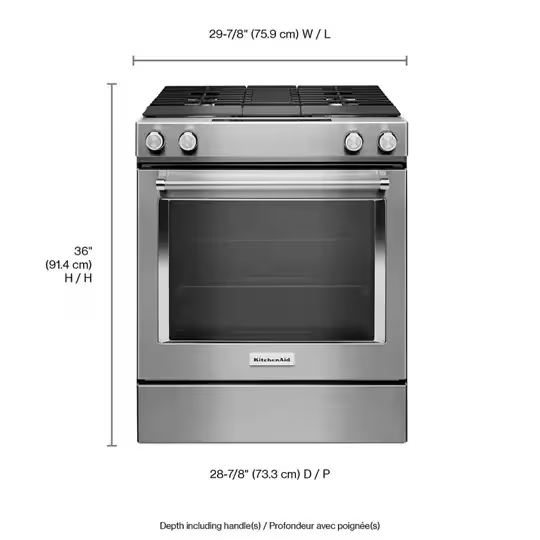

| Dimensions | |
| Capacity | 181.12 l, 6.4 cu. ft. |
| Common Size | 76.20 cm, 30 in |
| Depth | 73.34 cm, 28-7/8 in |
| Depth Closed Including Handles | 73.34 cm, 28-7/8 in |
| Depth With Door Open 90 Degree | 123.82 cm, 48-3/4 in |
| Gross Weight | 92.99 kg, 205 lbs |
| Height | 91.44 cm, 36 in |
| Net Weight | 83.01 kg, 183 lbs |
| Oven Interior Depth | 52.70 cm, 20-3/4 in |
| Oven Interior Height | 56.20 cm, 22-1/8 in |
| Oven Interior Width | 61.28 cm, 24-1/8 in |
| Width | 75.88 cm, 29-7/8 in |
| Element/Burner Details | |
| Cooktop Element Style | Gas Burner |
| Left Front Element-Burner Power | 17,000 BTU |
| Left Front Element-Burner Type | Burner |
| Left Rear Element-Burner Power | 5000 BTU |
| Left Rear Element-Burner Type | Burner |
| Number of Burner | 4 |
| Number of Grates | 3 |
| Right Front Element-Burner Power | 15,000 BTU |
| Right Front Element-Burner Type | Burner |
| Right Rear Element-Burner Power | 9200 BTU |
| Right Rear Element-Burner Type | Burner |
| DETAILS | |
| Fuel Type | Dual Fuel |
| LP Convertible | Yes |
| Oven Automatic Shut-Off | Yes |
| Oven Configuration | Single Oven |
| Oven Selections | Cancel/Off, Clock, Cook Time Indicator, Delay Start, Keep Warm Setting, Proofing, Steam Bake, Timer |
| Power On Indicator Light | Yes |
| Power Outage Compatible | No |
| Range Configuration | Slide-In |
| Range Type | Slide-in |
| CONTROLS | |
| Display Color | Red, White |
| Electronic Display Type | Digital |
| Grate Details | |
| Grate Details | Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish |
| Number of Grates | 3 |
| Electrical | |
| Amps | 40 |
| Power Cord Included | No |
| Volts | 240 |
| Features | |
| Range Features | ADA Compliant, Downdraft, EasyConvect™ Conversion, Even-Heat™ True Convection, FIT System, SatinGlide™ Racks, Steam Rack |
| Ventilation Details | |
| Maximum Motor CFM | 300 |
