Fit Guarantee
Replacing a similar cooktop from GE or another brand GE cooktops are guaranteed for an exact fit to make replacement easy. See offer criteria and details

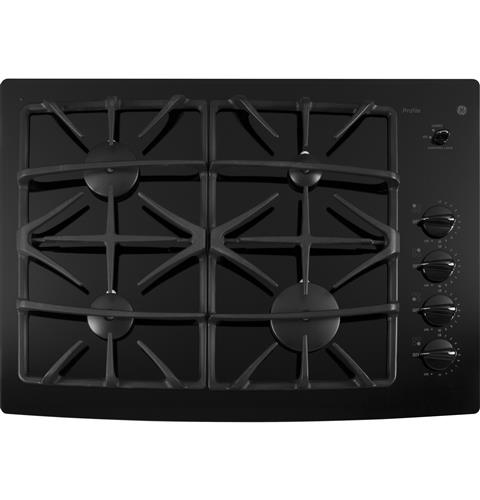

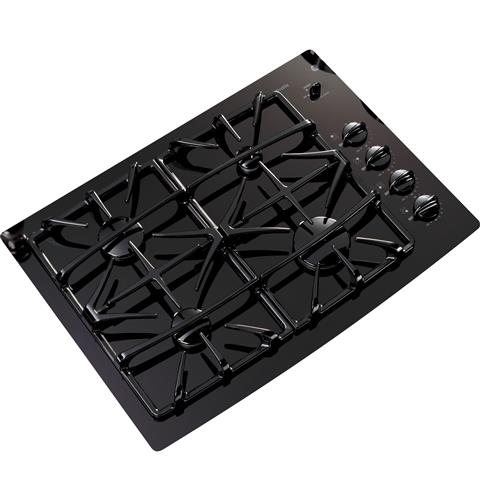

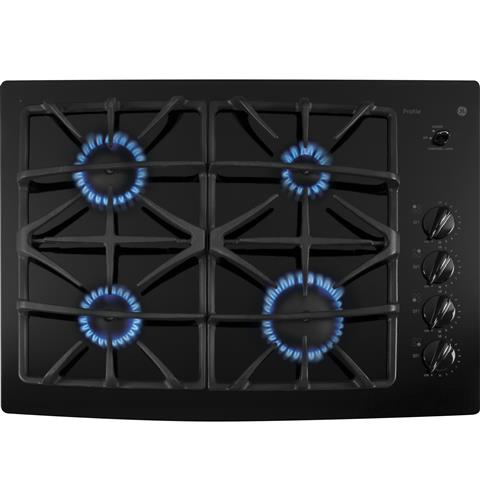

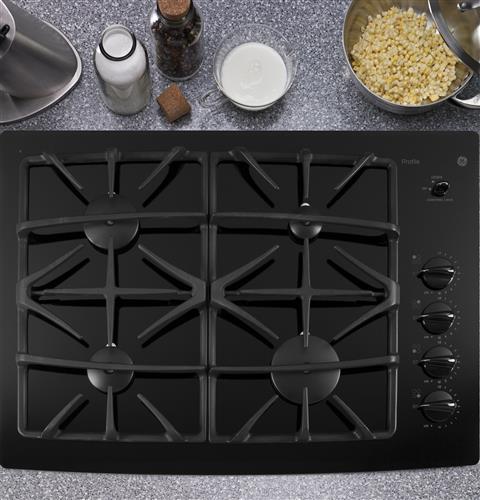

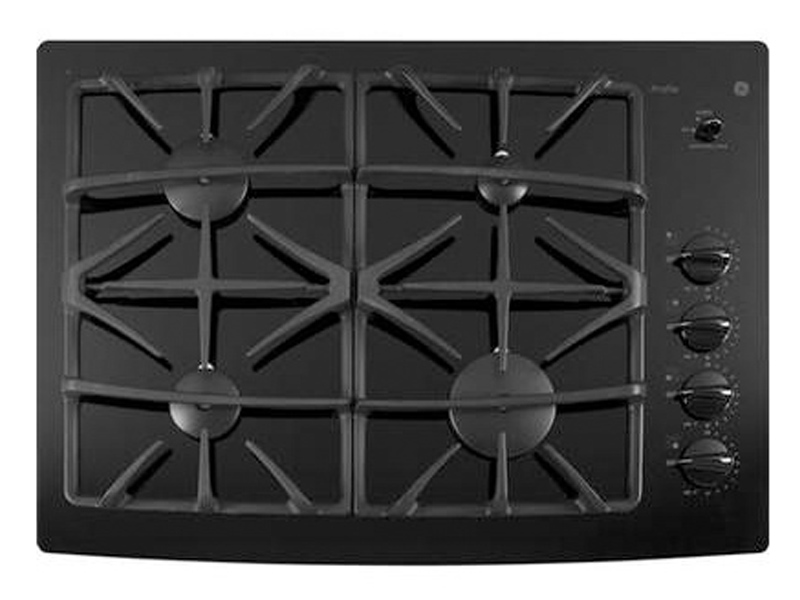

Gas on glass cooktop
Sleek and easy to clean
Sealed cooktop burners
Keep spillover contained on cooktop, making cleaning quick and easy
15,000 BTU Power Boil burner
Produces fast, intense heat
Precise Simmer burner
Delivers a low setting of 140 degrees
Continuous grates
Allow for easy movement of pans between burners
| Features | |
|---|---|
| Cooktop Burner Type | 4 Sealed |
| Ignition System | Electronic |
| Burner - Left Front | 11,000 BTU |
| Burner - Left Rear | 9,100 BTU |
| Burner - Right Front | 15,000 BTU Power Boil |
| Burner - Right Rear | 6,000 BTU Precise Simmer |
| Cooktop Control Features | Child Lock |
| Control Location | Right Side |
| Cooktop Burner Grate Features | Continuous Grates,Dishwasher Safe |
| Cooktop Burner Grate Material | Deluxe Cast |
| Fuel Type | Natural Gas (factory set) |
| Valves (Degree of Turn) | 270 |
| Appearance | |
| Valves (Degree of Turn) | 270 |
| Color Appearance | Black on Black |
| WEIGHTS DIMENSIONS | |
| Color Appearance | Black on Black |
| Approximate Shipping Weight | 49 lb |
| Cabinet Width | 30 in |
| Cutout Dimensions (Width x Depth) (In.) | 28-1/2 x 19-5/8 |
| Net Weight | 44 lb |
| Overall Depth | 21 7/16 in |
| Overall Height | 3 3/16 in |
| Overall Width | 29 3/4 in |
| Power / Ratings | |
| Overall Width | 29 3/4 in |
| Burner BTU Ratings (000's/BTU) - LP Gas | (1) 13.0; (2) 9.1; (1) 6.0 |
| Burner BTU Ratings (000's/BTU) - Natural Gas | (1) 15.0; (1) 11.0; (1) 9.1; (1) 6.0 |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| CLAIMS CERTIFICATIONS | |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Accessories | |
| Volts/Hertz/Amps | 120V; 60Hz; 5A |
| Cooktop Cleaning | Cream (WB64X5027) |
| LP Conversion Kit | Included |
| Warranty | |
| LP Conversion Kit | Included |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | For models produced on or after January 1, 2006,See written warranty for full details |
