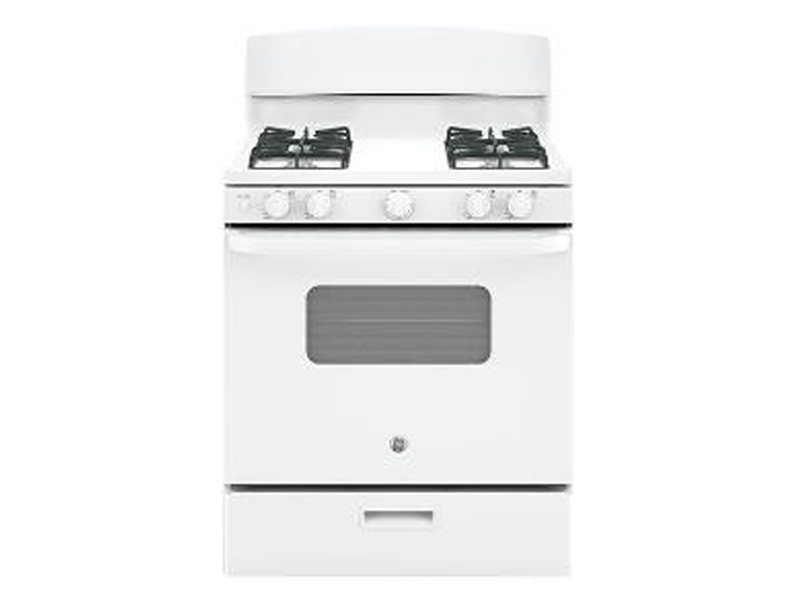

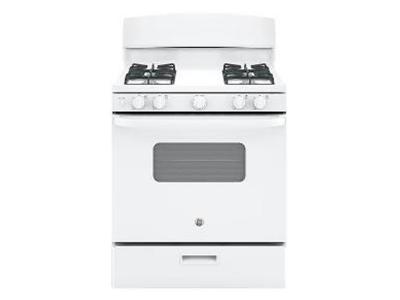

30" GE Free-Standing Standard Clean Gas Range - JCGBS10DEKWW

Category : Ranges


Standard Grates - Provide a sturdy and convenient cookware surface for everyday cooking.

Lift-Up Cooktop

LP Conversion KitIncluded
4 Leveling LegsYes
Cavity ColourGrey
Colour AppearanceWhite on White
Frameless Lift-off Oven DoorWhite Porcelain-Enameled
Handle StyleWhite, high gloss
Knob ColourGlossy White
Oven Door HandleSculptured
Oven Door with WindowRegular
Extra Large OvenYes
Oven Capacity4.8
Backguard TypePorcelain-Enameled
Burner - Left Front9100 BTU
Burner - Left Rear9100 BTU
Burner - Right Front9100 BTU
Burner - Right Rear9100 BTU
Burner Grate Type / StyleStandard Porcelain Steel; Square
Control LocationFront
Cooktop BurnersStd. / Twin Burners
Cooktop Grate/Burner Cap ColourGlossy Black
Cooktop GratesGlossy Black
Embossed Rack Positions6 Positions
Fuel TypeGas
Ignition SystemElectronic
Lift-Up CooktopYes
One-Piece Drip PansOptional Accessory
Oven InteriorStandard Clean
Oven Interior LightYes
Oven Racks2 chrome
Porcelain-Enameled SubtopYes

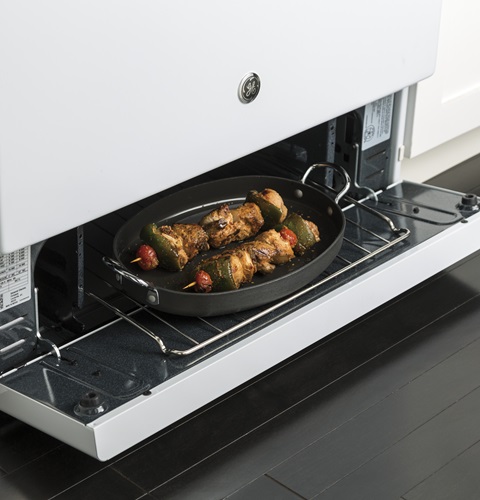

Slide - Out Broiler DrawerYes
TrueTempTM SystemYes
Valves (Degree of Turn)140
Power & Ratings
Oven/Broiler BTU Rating - LP (000's BTU's)16.5
Oven/Broiler BTU Rating - Nat. Gas (000's BTU's)18.0
Top Burner BTU Rating - LP (000(4) 8.0
Top Burner BTU Rating - Nat. Gas / LP (000's BTU's)(4) 9.1
Volts; Hertz; Amps120V; 60Hz ; 15A
Limited 1-yearEntire Appliance; In Home; Parts & Labour
Weights & Dimensions
Approximate Shipping Weight (lbs.)165
Cabinet Width Required (in.)30
Depth With Oven Door Open 90 Degrees (in.)46 1/4
Height to Cooking Surface (in.)36 to 36-1/2
Interior Dimensions - Upper Oven (w x h x d) (in.)24 x 18-1/2 x 19
Overall Depth (excluding handle)21-1/2
Overall Depth (in.)28-3/4
Overall Height (in.)46-1/2
Overall Width (in.)30
