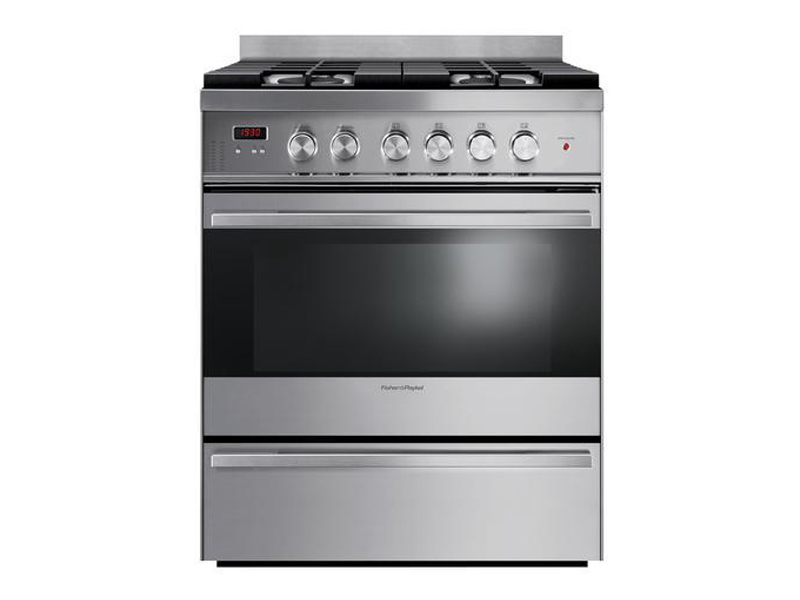

30" Fisher & Paykel 3.6 Cu. Ft. Gas Range - OR30SDBMX1

Category : Ranges
SKU : OR30SDBMX1


Literature

This 30" freestanding range gives you the flexibilty to prepare several courses simultaneously with an extra large oven, combined with a four-burner gas cooktop. The unique design and clean lines in black reflective glass and stainless steel complement the style and elegance of any modern kitchen.

Accessories

  • Broiling pan :: 1
  • Broiling rack :: 1
  • Flat shelf :: 1
  • LPG conversion kit
  • Step down oven shelves :: 1
  • Storage drawer
  • Telescopic slide runners :: 2 sets
  • Wire side racks :: 4 position
  • Wok stand

BTU Burner Outputs

  • Dual wok burner :: 17000BTU (2)
  • Semi rapid burner :: 8000 BTU/h (2)
  • Simmer burner :: 1000 - 2100 BTU (2)

Capacity

  • Total oven capacity :: 3.6cuft

Cleaning

  • High acid resistant graphite enamel interior
  • Oven light :: 2 rear
  • Removable oven door
  • Removable shelf runners

Controls

  • 3 button electronic clock
  • Dial controls
  • Electronic clock
  • Minute timer
  • Stainless steel dials

Cooking Modes

  • Bake
  • Fan Bake
  • Broil

Cooktop/Hob Features

  • Cast iron trivets
  • Electronic ignition
  • Flame failure protection
  • Gas burners :: 4 (2 Dual)
  • LPG and Natural Gas compatible
  • Splashback

Performance Features

  • Cooking modes :: 3
  • Cooktop :: Gas
  • Functions :: 3 + light
  • LPG/Natural gas compatible
  • Open venting

Product Dimensions

  • Overall depth of product :: 24 7/32
  • Overall height of product :: 35 21/32-36 11/32
  • Overall width of product :: 29 7/8
  • Shelf positions :: 4

Requirements

  • AMP draw :: 0.92A
  • Supply frequency :: 60Hz
  • Supply voltage :: 120V

Safety

  • Anti-tilt bracket
  • Cool touch triple glazed door
  • Door and oven cavity cooling system
  • Flame failure

Warranty

  • 2 year part and labour warranty
Specification
Length24.22
Width29.88
Height35.66
Range Style Free-Standing
Range Fuel Type All Gas
Professional Series No
Total Capacity 3.6 cu.ft.
Electrical Requirement 110V 60Hz
Number of Burners 5
Grate MaterialCast Iron
Automatic Re-ignition Yes
Burner BTU RatingMax 17K
Oven Controls Knob
Oven CleaningManual Clean
Convection Yes - Fan Convection
Glide Rack Yes
Oven Type Single Oven
Sabbath ModeNo
Temperature ProbeNo
Drawer Type Storage Drawer
