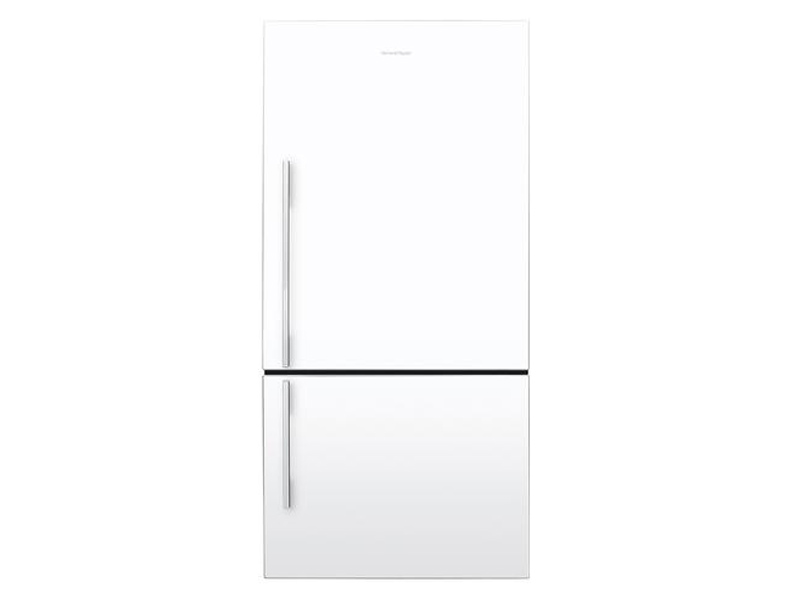

30" Fisher & Paykel 17.6 Cu. Ft. ActiveSmart Counter Depth Bottom Freezer Refrigerator - E522BRWFD5



Color fads come and go, but white kitchens will never go out of style. Combining value with style the ActiveSmart™ range of white fridges is designed to complement any kitchen style, traditional or contemporary.

What is ActiveSmart™?

ActiveSmart™ consists of a microprocessor, interior temperature sensors, independently controlled variable speed fans and multiple air ducts. The microprocessor controls how the refrigerator operates based on changing patterns of use. The sensors continuously send information to the microprocessor, which analyses and adjusts the fan speed and compressor operations accordingly to deliver a consistent and stable temperature. Continuous feedback means that ActiveSmart™ adjusts to the way you live. Its ability to respond to daily use means that it only uses the energy needed to keep your food fresher for longer.

Easy Living

These fridges adapt to suit your lifestyle by streamlining food preparation and organisation with SmartTouch controls, flexible shelving and storage options and slide out bins and trays.

One for all


Take a closer look

Planning Files


Download Fisher & Paykel planning files for use in your design process.


  • Adjustable glass shelves
  • Counter depth
  • Covered door shelves 2
  • Four shelves (incl above vegetable area)
  • Freezer bins 3
  • Front levelling feet
  • Full extension runners
  • Full width adjustable door shelves 2
  • Half width adjustable door shelves 2
  • Humidity controlled half-width crisper bins 2
  • Ice cube trays 2
  • Rear rollers
  • Roll out freezer tray
  • Single bottle holders 2
  • Consumption Data
  • Energy usage (kWh/yr) 454
  • Premium Energy Efficiency - Energy Star


  • Bottom mount freezer
  • Concealed hinges
  • Door opening right hand hinge
  • Flat door design
  • Straight designer handle
  • White prepaint cabinet


  • Depth - door closed not including handle 27-3/8in
  • Depth - including handle 29in
  • Freezer storage volume 4.9 cu.ft
  • Height - incl. feet and hinge cap 67-1/2in
  • Minimum air clearance - at rear (incl. compressor tray) 1 in
  • Minimum air clearance - each side 1 in
  • Minimum air clearance - on top 2 in
  • Refrigerator storage volume 12.4 cu.ft
  • Total net volume 17.6 cu.ft
  • Width 31-1/8in

Performance Features

  • ActiveSmart™ system
  • Adaptive defrost
  • Bottle chill
  • Door alarm - freezer
  • Door alarm - refrigerator
  • Fast freeze
  • Frost free
  • Humidity Control System
  • LED lighting
  • Sabbath Mode
  • Smart Touch control panel
Covered door shelves2
Freezer bins3
Full width adjustable door shelves 2
Half width adjustable door shelves 2
Humidity controlled half-width crisper bins 2
