The time consuming ways of installing hoods are now a thing of the past. The FIT system eliminates measuring, cutting and filler strips for a perfect fit every time. Once installed, homeowners enjoy the quiet operation of 6.4 sones at its highest speed with variable fan speeds and recirculation option. This way, the vent hood doesn't disturb family time in the kitchen. And when cooking introduces steam, grease, smoke and odors into the surrounding air, a 225 CFM fan takes care of it.
FIT System
The FIT system eliminates measuring, cutting and filler strips for a perfect fit every time. The FIT system ensures your hood will install seamlessly into your cabinet cutout in three easy steps. First, attach FIT brackets and prep hood for electrical connection; second, position hood and attach to cabinet; third, complete electrical connection to hood. Now the only thing left to do is use it. Based on typical installation with existing electrical and ventilation connections. Consult a professional installer to ensure your installation complies with code requirements.
Deluxe Hood Sound Levels
Keep the hood from disturbing family time in the kitchen. This hood features the quiet operation of 6.4 sones at the hood's highest speed with variable fan speeds and a recirculation option. Based on vertical 7" round duct installation.
Hidden Vent
This sleek and stylish hidden vent matches almost every modern or traditional kitchen. The design moves the ventilation out of sight to create a seamless look and a surface that's super easy to clean.
Powerful Variable-Speed, 225 CFM Fan
Cooking introduces steam, grease, smoke and odors into the surrounding air. With a powerful variable speed 225 CFM fan, this hood is a perfect match for a midsize cooktop and some high-heat cooking methods.
Incandescent Lighting
Incandescent bulb provide bright cooktop lighting to make preparation easy.
3-1/4" x 10" Damper
Easily connects to the 10" rectangular ductwork in your home.

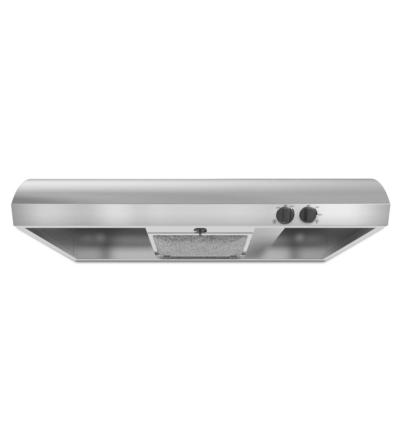

Recirculation (Non-Vented/Duct-Free)
By not having to connect to outside air, this hood can be installed almost anywhere. Recirculation happens through filters to keep the air fresh. It's perfect for people in condos or those without existing ductwork.
| Dimensions | |
|---|---|
| Width | 29 15/16 |
| Depth | 18 5/8 |
| Height | 4 15/16 |
| Configuration and Overview | |
| Hood Type | Under-the-Cabinet |
| Venting Type | Exterior or Recirculating |
| Fan CFM | 225 |
| CONTROLS | |
| Number of Fan Speeds | 2 |
| Task Light | Incandescent |
