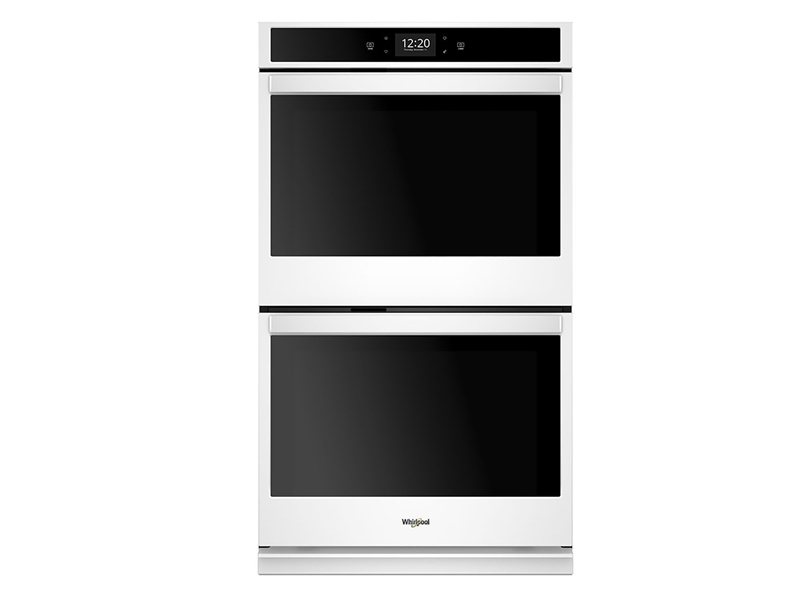

30" Whirlpool 174 10.0 cu. ft. Smart Double Wall Oven with True Convection Cooking - WOD77EC0HW

30" Whirlpool 174 10.0 cu. ft. Smart Double Wall Oven with True Convection Cooking - WOD77EC0HW

SKU : WOD77EC0HW
SKU: WOD77EC0HW

$3,100.00 CAD
$3100

Literature

External Dimensions

Dimensions shown are for planning purposes only. For complete information, see Installation Instructions packed with product.

Depth : 26 7/16

Height : 51 1/2

Width : 30

Cutout Depth : 24

Cutout Height : 50 1/4

Cutout Width : 28 1/2

Key Features



Smart Appliance : Care for your family from your smartphone or tablet3.

Scan-to-Cook Technology : Get the right settings every time. Scan a frozen food barcode with your smartphone or tablet and send recommended or customized cooking instructions straight to your oven for dinner done the way your family wants it4.

Touchscreen : Get instant access to the settings you use most with an all-new touchscreen that learns, adapts and suggests customized presets based on your family's routines.

Voice Control : Keep up with the kitchen or laundry no matter what you’ve got on your hands. Control your appliance with simple voice commands when you sync it with your smart home assistant.5

Multi-Step Cooking : Make multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once6. The temperature automatically adjusts based on the recipe you enter for great results without having to monitor your meal.

Fingerprint-Resistant : Hide fingerprints and smudges with steel that easily wipes clean. Available in Black Stainless.

Frozen Bake Technology : Skip preheating with Frozen Bake technology. Cook frozen food with preprogrammed settings that automatically adjust cooking times so you can get select dinner items like pizza and lasagna from the oven to the table in less time7.

True Convection Cooking : Cook foods faster8 with the addition of a third element plus a fan that distributes hot air evenly over, under and around food so dinner is ready when they are.

Convection Conversion : Easily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.

Nest Learning Thermostat Integration : Integrate your Nest Learning Thermostat with the mobile app to be alerted if your oven is left on while you're away9.

Remote Start : With remote start enabled, use your smartphone or tablet to remotely turn your oven on so it's heated up and ready to cook meals when you are10.

Party Mode : Start preparing for guests from your smartphone or tablet. With remote start enabled, this mode automatically turns on the Keep Warm setting so dishes stay ready to serve11.

Enhanced Troubleshooting : Get immediate support for quick solutions by using your smartphone or tablet to access troubleshooting videos12.

Guided Service : Keep track of scheduled appointments and make sure issues are known using the mobile app to send data from the appliance directly to Whirlpool brand customer service13.

Self-Close Door : Keep doors from shutting too quickly with the smooth, quiet mechanism of self-close doors.

Temperature Sensor : Get evenly baked food with a sensor that monitors oven temperature and adjusts the cooking elements.

Rapid Preheat : Save time with 20% faster preheating14. A rear fan combined with the use of all of the elements helps to heat the oven quickly.

Control Lock Mode : Use your smartphone or tablet to remotely disable the control panel to avoid unintended use15.

Sabbath Mode : Use your smartphone or tablet to remotely set the oven to remain on the "Bake" setting at a constant temperature until it's manually turned off16.* When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.

Tap Touch Controls : Clean these controls as easily as you use them.

10.0 cu. ft. Total Capacity

FIT System : Whirlpool wall ovens come with the parts to fit, right out of the box, guaranteed. If your new wall oven doesn’t fit, Whirlpool brand will pay up to $300 toward cabinet modification17.

Extra-Large Window : Keep an eye on your meal through the extra-large oven window.

Scan-to-Connect Technology : You don't need to be a tech expert to connect your new appliance. Simply open the Whirlpool app, add your appliance and follow the guided experience to get up and running quickly18.



Configuration and Overview
Oven TypeDouble
Fuel TypeElectric
Oven Cooking SystemConvection Upper/Thermal Lower
Star K CompliantYes
ADA CompliantNo
CULYes
ULUL
Amps40
Volts240
Built In Oven Features
Hidden Bake ElementYes
Bake Element Power2800W
Broiler Element Power3600W
Convection Element TypeTrue
Convection Element Power2800
Broiler LocationTop of Oven
Door Broil PositionClosed
Interior CoatingPorcelain
Interior ColorBlack
Oven Rack 1 TypeStandard
Oven Rack 2 TypeStandard
Oven Rack 3 TypeStandard
Number of Bake Elements1
Number of Broil Elements1
Convection FunctionsBake Broil Roast Upper
Oven Cooking SystemConvection Upper/Thermal Lower
Light TypeIncandescent
Light(s) ControlOven Light Touch Pad
Self-Cleaning Oven RacksNo
Oven Controls
Convection FunctionsBake Broil Roast Upper
Display ColorFull Color
FeaturesAudible Signal, Automatic Door Latch, Broil, Cancel/Off, Clock, Control Lock, Convect Modes, Cook Time Indicator, Delay Start, Easy Convect Baked Goods, Easy Convect Meats, Easy Convect Pizza, Favorites, Frozen Bake, Keep Warm Setting, Language Conversion, Rapid Preheat, Sabbath Mode, Start Time, Stop Time, Temperature-Sensor Baking, Timer, Warm Hold
Language ConversionEnglish/French/Spanish
Temperature ConversionYes
CONTROLS
Flush Installation ApprovedNo
Door TypeMetal & Glass
Handle ColorStainless Steel
Handle MaterialStainless Steel
Oven Window SizeExtra Large
Door RemovableYes
