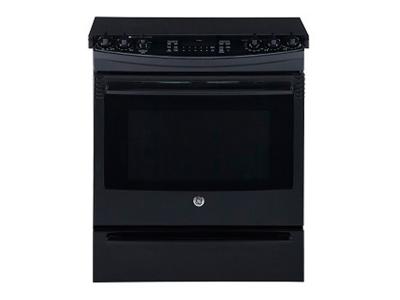

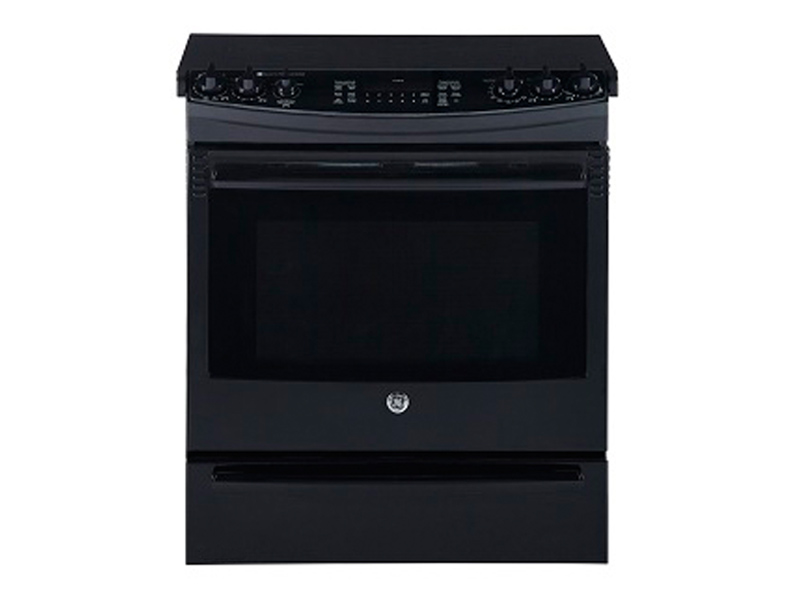

30" GE Profile Slide-In Electric Self Cleaning Convection Range with Baking Drawer - PCS940DFBB

30" GE Profile Slide-In Electric Self Cleaning Convection Range with Baking Drawer - PCS940DFBB

Category : Ranges
SKU : PCS940DFBB
SKU: PCS940DFBB


Literature

Bridge Element

Combines two cooking elements into one elongated and unique cooking area, creating an ideal area for griddles and gourmet pans.

Tri-ring Ribbon Element

This is three elements in one. A small element for small pans, medium element for medium size, and a large element for big pots or skillet. This one element adjusts to virtually every one of your cooking needs.

Extension Gliding Roller Rack

Glide smoothly in and out on stainless steel ball bearings for easy access, and are designed to remain in the oven during the self-clean cycle



Appearance
Colour AppearanceBlack on Black
Control LocationUpfront
Flush appearance InstallationYes
Frameless Lift-off Oven DoorBlack Glass
Handle StyleBlack, high gloss
Knob ColourGlossy Black
Other Colours AvailableWW: SS
Oven Door TypeBlack Glass
Oven Door with WindowBig ClearViewTM
Textured Steel Side PanelsBlack
Capacity
Lower Oven1.0
Main Oven5.6
Total Oven Capacity6.6
Features
"On" Indicator LightYes
3-in-1 VersaCook System (VCS)Yes
4 Pass Broil Element3410 watt
6 Pass Hidden Bake Element2850 watt
Audible Preheat SignalYes
Auto Oven Shut-Off With OverrideYes
Auto Self-CleanYes
Automatic Meat Thermometer (Probe)Yes
Automatic Oven LightYes
Automatic Self-Clean Oven Door LockYes
C° or F° ProgrammableYes
Certified Sabbath ModeYes
Convection Element1200 W
Delay Bake Option With Cook & HoldYes
Delay Clean OptionYes
Dishwasher Safe KnobsYes
Drawer System, Bake/Warm/StorageBake
Electronic Clock & TimerYes
Element - Center6" 120W Warming Zone
Element - Left Front7" 1800W Bridge
Element - Left Rear7" 1800W Bridge
Element - Right Front6"/9"/12" 3000W
Element - Right Rear6" 1500W
Flat-back ConvectionYes
Fuel TypeElectric
Glass-Ceramic CooktopBlack
Gliding oven racks1
Hidden Bake ElementYes
Hot Surface4
Indicator Lights2
Infinite Heat ControlsYes
Light Self Clean OptionYes
Optional Closed Door BroilYes
Oven Cavity ColourBlack
Oven Interior LightHalogen
Oven Shelves3 Heavy Duty Self-Clean
Oven Type / CleaningConvection Self-Clean
QuickSet ControlsQuickSet VI Glass Touch Controls
Range LockoutYes
Removable Baking Drawer LinerIncluded
Temperature DisplayYes
TrueTempTM SystemYes
Variable BroilYes
Variable Cleaning Timew/Delay Clean Option
Power & Ratings
Amps @ 240V/208V40
Convection Wattage1200 W
EnerGuide Rating (kWh/year)570
KW Rating at 208V10.9
KW Rating at 240V14.5
Warranty
Full 1 YearEntire Appliance; In Home; Parts & Labour
Limited Additional 4 Years (5 Years Total)Radiant Heating Elements & Smoothtop Surface Against Thermal Breakage; Parts Only
Weights & Dimensions
Approximate Shipping Weight (lbs.)204
Cabinet Width Required (in.)30
Cooktop Width (in.)31-1/8
Cutout Dimensions (w x h x d) (in.)30 x 35-7/8 x 23-3/8
Depth with Door Open (in.)46-3/4
Overall Depth (in.)26-1/2
Overall Height (in.)36-3/4
Overall Width (in.)29-7/8
