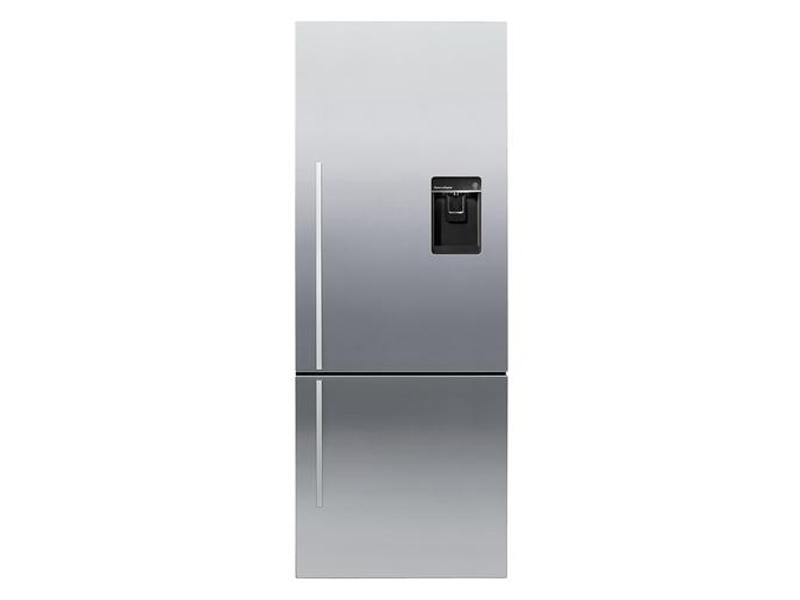

25" Fisher & Paykel 13.5 Cu. Ft. ActiveSmart Counter Depth Bottom Freezer With Ice And Water - RF135BDRUX4
Literature
You may also like
ActiveSmart™ technology has been given a new addition, an integrated water dispenser providing you with chilled filtered water and an internal ice maker for clean, crisp ice cubes on demand. With no impact on space in the freezer or refrigerator door, this is the perfect addition to the ActiveSmart™ family.
Configuration
- Adjustable glass shelves
- Adjustable roller feet
- Clear freezer bins :: 3
- Counter depth
- Covered door shelves :: 2
- Egg trays :: 2
- Four shelves (incl above vegetable area)
- Front levelling feet
- Full extension runners
- Full width adjustable door shelves :: 2
- Half width adjustable door shelves :: 2
- Humidity controlled half-width crisper bins :: 2
- Ice bin and scoop
- Rear rollers
- Roll out freezer tray
- Single bottle holders :: 2
Consumption Data
- Energy usage (kWh/yr) :: 545
Design
- Bottom mount freezer
- Concealed hinge
- EZKleen stainless steel
- Flat door design
- Silver prepaint cabinet
- Straight designer handle
Dimensions
- Height - incl. feet and hinge cap :: 67 1/2in
- Width :: 25in
- Depth - including handle :: 28 3/4in
- Depth - door closed not including handle :: 27 3/8in
- Minimum air clearance - each side :: 3/4in
- Minimum air clearance - at rear (incl. compressor tray) :: 1 1/8in
- Minimum air clearance - on top :: 2in
- Refrigerator volume :: 9.6 cu.ft
- Freezer volume :: 3.8 cu.ft
- Total gross volume :: 13.4 cu.ft
Performance Features
- ActiveSmart™ system
- Adaptive defrost
- Bottle chill
- Built in ice maker
- Door alarm - freezer
- Door alarm - refrigerator
- Door opening - right
- Fast freeze
- Frost free
- Humidity controlled crisper bins
- Ice Boost
- Internal ice maker
- LED lighting
- Multi air ducts
- Sabbath Mode
- Smart Touch control panel
- Ultraslim water dispenser
Warranty
- 2 year parts & labour warranty, plus additional 3 year sealed system parts warranty
Specification | |
---|---|
Length | 27.38 |
Width | 25 |
Height | 67.53 |
Refrigerator Type | Bottom-Freezer Refrigerator |
Fridge Capacity | 9.6 cu.ft |
Freezer Capacity | 3.8 cu.ft |
Total Capacity | 13.4 cu.ft |
EnerGuide Rating (KWH) | 545 |
Energy Star Qualified | No |
French Door | No |
Counter Depth | Yes |
Gallon Door Storage | No |
Refrigerator Shelf Construction | Glass |
Humidity Controlled Crisper | Yes |
Water Dispenser | Yes - External |
Water Filter | Yes |
Lighting Type | LED |
Cabinet Side Colour | Stainless Steel |
Door Swing | Hinge on Right - Non-reversible |
Factory Installed Ice Maker | Yes |
Freezer Door Type Swing | Door |
Defrost Type | Frost-Free |
