Ergonomic
The DishDrawer™ is as easy to open and close as a kitchen drawer and conveniently positioned at bench height so loading and unloading requires minimal bending. Easy-to-use folding tines allow you to place large pots, platters and bowls into the drawer with ease.
SmartDrive™ Technology
The unique, brushless DC motor developed by Fisher & Paykel, incorporates fewer moving parts meaning greater reliability.
Handle Option
DCS DishDrawer™ dishwashers come with a choice of two handle profiles — round or square.
Superior Wash Performance
From heavy duty to delicate; the nine wash cycles offer variable wash (or water) pressure combined with the world’s first flow-through detergent dispenser. 163°F sanitizing temperature and fan-assisted drying ensure superior results.
World's First
With over a decade of manufacturing experience, the world’s first drawer dishwasher, designed by Fisher & Paykel for DCS, offers the most ergonomic solution to dishwashing.
Generous Capacity

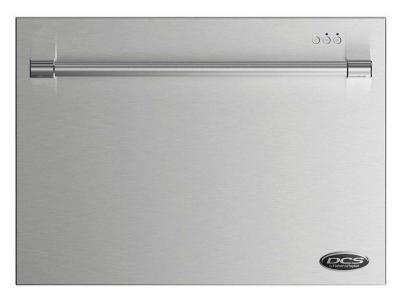

The Single DishDrawer™ dishwasher holds 7 place settings. A fully adjustable racking system with independently movable racks and folding tines gives flexibility allowing the drawers to hold large items and plates up to 13"".
| Accessories | |
|---|---|
| Cutlery basket | 2 |
| Consumption | |
| Energy star | yes |
| Energy usage | D141 kWh/year |
| Water usage | <2 gal |
| Measurements | |
| Depth without handle | 22 11/16" |
| Power Requirements | |
| Amp draw | 5.8A |
| Warranty | |
| Warranty | Warranty Limited 1 Year Parts & Labor |
| Accessories sold separately | |
| AHV2-DD24 | Square handle option |
| CONTROLS | |
| Electronic fault / Diagnostic indicator | yes |
| End of cycle beeps | yes |
| Energy saving delay start option up to 12 hrs | yes |
| Internal wash selector | yes |
| One button start | yes |
| Rinse aid indicator light | yes |
| SAFETY | |
| Child lock | Yes |
| Wash programmes | |
| Delicate | yes |
| Delicate Eco | yes |
| Fast | yes |
| Fast Eco | yes |
| Heavy | yes |
| Heavy Eco | yes |
| Normal | yes |
| Normal Eco | yes |
| Rinse | yes |
| Wash programs | 9 |
| Capacity and loading | |
| Accommodates plates up to 13" | Yes |
| Adjustable height | Yes |
| Fold down tines | Yes |
| Foldable cupracks | Yes |
| Pitch adjustable tines | Yes |
| Place settings | 7 |
| Performance | |
| ADA Compliant | Yes |
| Eco options | Yes |
| Fan assisted drying | Yes |
| Flow through detergent dispenser | Yes |
| Quiet operation | Yes |
| Smart Drive™ technology | Yes |
