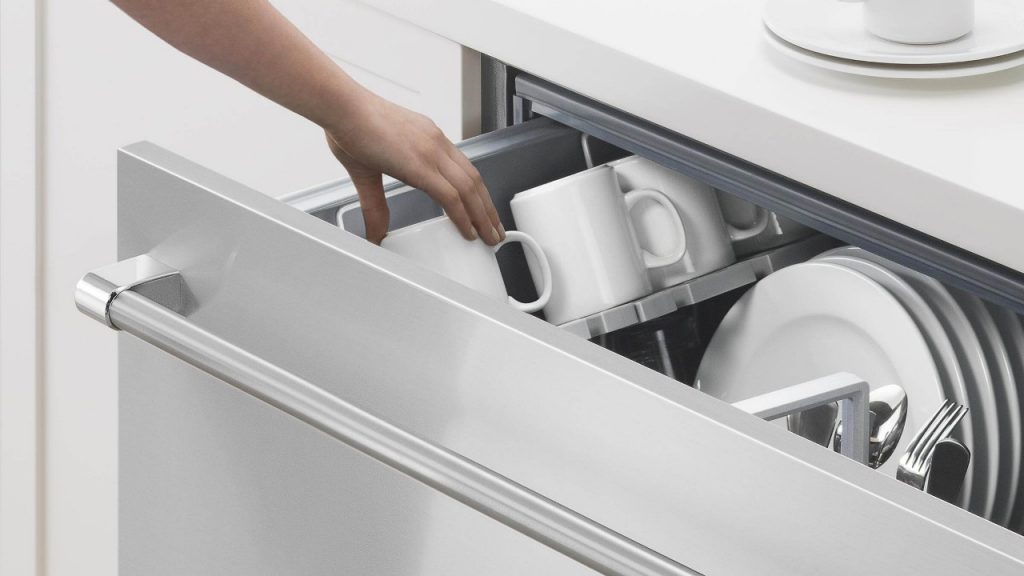

Ergonomic
The DishDrawer™ is as easy to open and close as a kitchen drawer and conveniently positioned at bench height so loading and unloading requires minimal bending. Easy-to-use folding tines allow you to place large pots, platters and bowls into the drawer with ease.
SmartDrive™ Technology
The unique, brushless DC motor developed by Fisher & Paykel, incorporates fewer moving parts meaning greater reliability.
Handle Option
DCS DishDrawer™ dishwashers come with a choice of two handle profiles — round or square.
Superior Wash Performance
From heavy duty to delicate; the nine wash cycles offer variable wash (or water) pressure combined with the world’s first flow-through detergent dispenser. 163°F sanitizing temperature and fan-assisted drying ensure superior results.
World's First
With over a decade of manufacturing experience, the world’s first drawer dishwasher, designed by Fisher & Paykel for DCS, offers the most ergonomic solution to dishwashing.
Generous Capacity
The Double DishDrawer™ dishwasher holds 14 place settings. A fully adjustable racking system with independently movable racks and folding tines gives flexibility allowing the drawers to hold large items and plates up to 13"" in the top drawer.
| Accessories | |
|---|---|
| Cutlery basket | 2 |
| Kick strip | yes |
| Consumption | |
| Energy star | yes |
| Energy usage | 276 kWh/year |
| Water usage | <2 gal per drawer |
| Accessories sold separately | |
| Square handle option | AHV2-DD24 (x2) |
| Measurements | |
| Depth of toekick recess (to back of front panel) | 1 3/16 - 3 5/8" |
| Depth without handle | 22 1/2" |
| Height of toekick panel (adjustable) | 2 3/4 - 4 3/4" |
| SAFETY | |
| Child lock | Yes |
| CONTROLS | |
| Electronic fault / Diagnostic indicator | yes |
| End of cycle beeps | yes |
| Energy saving delay start option up to 12 hrs | yes |
| Internal wash selector | yes |
| One button start | yes |
| Rinse aid indicator light | yes |
| Power Requirements | |
| Amp draw | 10.6A |
| Circuit Supply Voltage | 15A |
| Supply Frequency | 60Hz |
| Supply Voltage | 120V |
| Wire | 3 |
| Wash programmes | |
| Delicate | Yes |
| Delicate Eco | Yes |
| Fast | Yes |
| Fast Eco | Yes |
| Heavy | Yes |
| Heavy Eco | Yes |
| Normal | Yes |
| Normal Eco | Yes |
| Rinse | Yes |
| Wash programs | 9 |
| Capacity and loading | |
| Accommodates plates up to | 13"(top) - 11 1/2"(bottom) |
| Adjustable height | Yes |
| Fold down tines | yes |
| Foldable cupracks | Yes |
| Pitch adjustable tines | Yes |
| Place settings | 14 |
| Performance | |
| Eco options | Yes |
| Fan assisted drying | Yes |
| Flow through detergent dispenser | Yes |
| Quiet operation | Yes |
| Smart Drive™ technology | Yes |
| Warranty | |
| Warranty | Warranty Limited 1 Year Parts & Labor |
